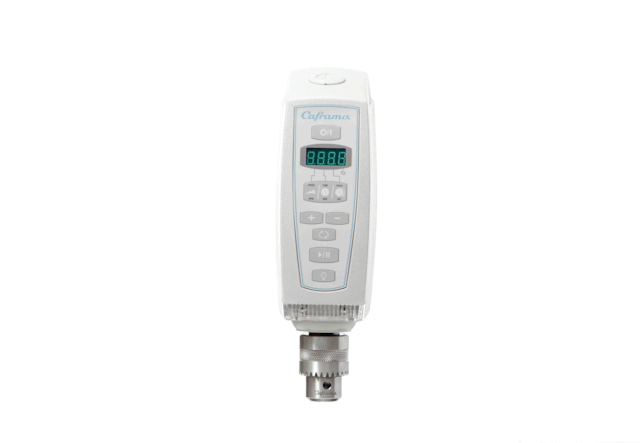

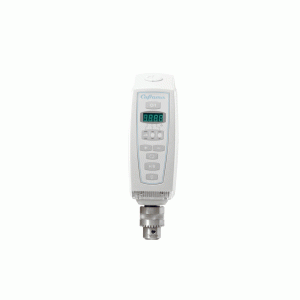

Reversing Digital

Model BDC2010

Reversing Digital 2010
  • Reversing Digital 2010

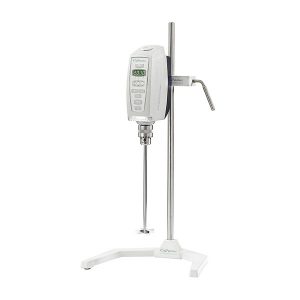

  • Reversing Digital 2010 Stirring System

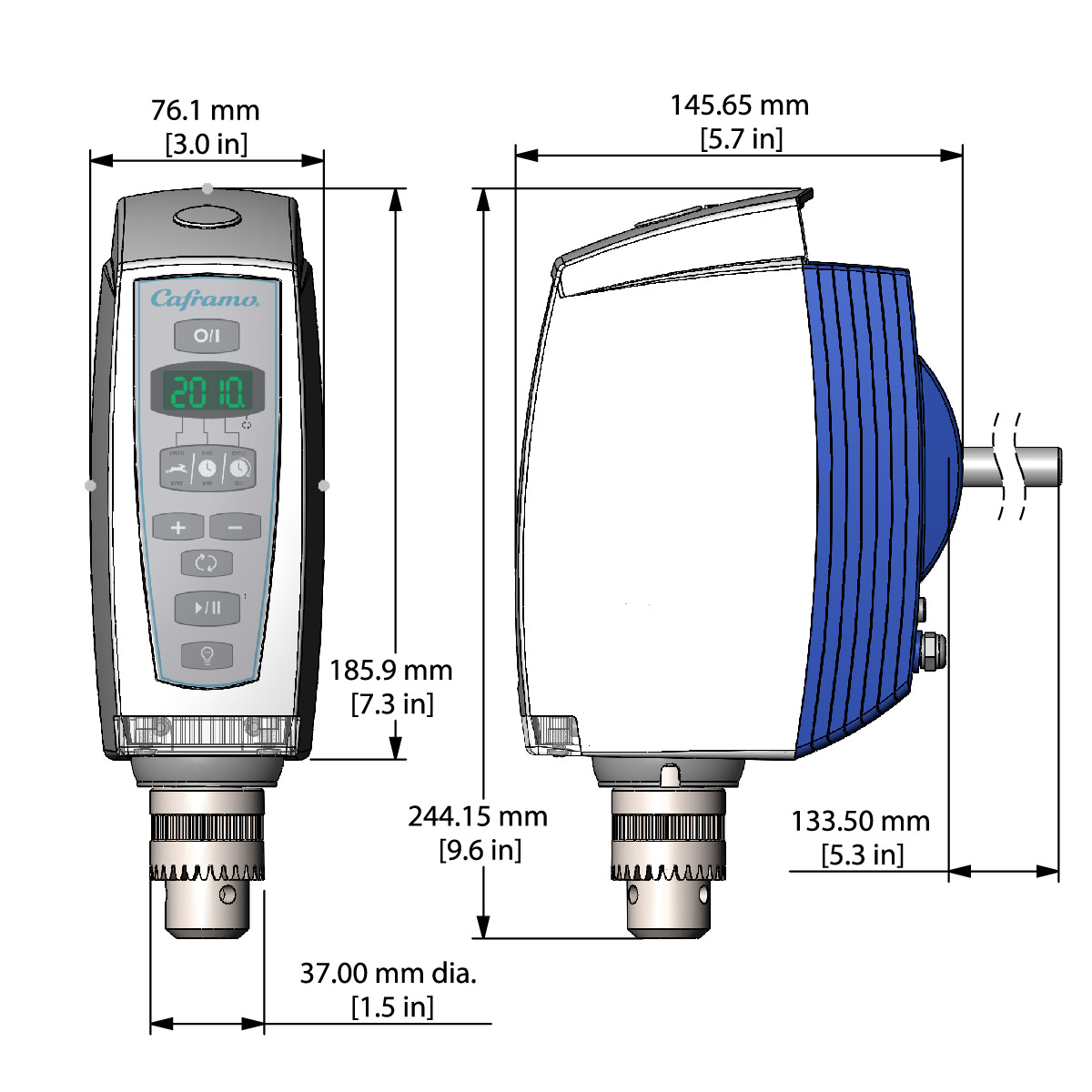

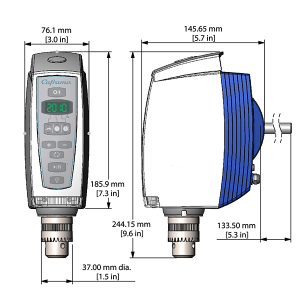

  • Reversing Digital 2010 Dimensions

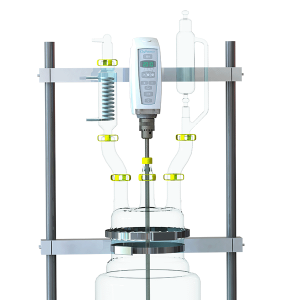

  • Chemical Synthesis

Reversing Digital

Model BDC2010

Caframo has a history of great innovation in overhead stirrers. The BDC2010 stirrer is no exception and delivers 25% more power than the BDC2002 while keeping the same compact footprint, Stirlight™ and through shaft. The BDC2010 works smarter and allows the user complete mixing control. The stirring direction can be changed with the touch of the reversing button. The countdown timer times a stirring activity and beeps when completed. In xRx mode the stirrer is set up to continuously reverse from one direction to the other for a set length of time. (Picture the agitation mode of a top loading washing machine!)


Speed 40-2010 rpm (clockwise and/or counterclockwise)
Volume Maximum 25 L (6.5 US Gallons)
Viscosity Maximum 20,000 mPas (20,000 cP)
Torque Maximum 90 Ncm (7.9 in-lbs = 127 in-oz)
Output Power 50 Watts (1/15 hp)
Speed Display Yes
Speed Accuracy ± 1 rpm or ± 3% of reading
Torque Display No
Zero Torque No
Timer Countdown 1-2000 minutes (33.3 hours)
Through Shaft Yes
Chuck Maximum Shaft Diameter 10 mm (⅜ in)
Chuck Guard Available
Rotation Direction Clockwise and counterclockwise
xRx Mode 1-2000 minutes (33.3 hours)
Housing Epoxy-coated zinc
Weight Power Supply: 0.6 kg (1.2 lb), Stirrer: 3.0 kg (7 lb)
IP Rating IP42
Voltage 100-240 volt must use Caframo power supply
Frequency 50/60 Hz
Ambient Temperature Operation 5-40 °C (41-104 °F)
Relative Humidity Operation 80 %
Approvals CSA listed to Canada and US standards
Warranty 3 years
BDC2010

Overhead stirrer motor 100-240 volts, 50/60 Hz. Includes support rod, chuck, chuck key, external power supply, grounded North American power cord, and printed manual.

BDC2010U1

Overhead stirrer motor 220-240 volts, 50/60 Hz. Includes support rod, chuck, chuck key, external power supply, UK and EU cord sets, and printed manual.

BDC2010AU

Overhead stirrer motor 220-240 volts, 50/60 Hz. Includes support rod, chuck, chuck key, external power supply, Australia cord set, and printed manual.

Remember to order a stand, clamp and impeller for a complete system to start mixing.

  • Features
    • Clockwise and counterclockwise stirring
    • Timer
    • Stirlight™
    • Sealed housing
    • Brushless DC motor
    • Digital display
    • Through shaft
    • Electronic digital control
  • Benefits
    • Stirring versatility
    • Repeatability to process
    • Allows monitoring of mixing properties of batches
    • Keeps liquids and moisture out in aggressive environments
    • High efficiency (less heat)
    • Precise speed adjustment
    • Easy impeller adjustment saves time
    • Set speed is maintained as viscosity changes
    • Automatic overload protection
  • Compact Stand A210

    Compact Stand

    Model A210

    • 610 mm (24 in) stand rod
    • 240 L x 301.3 W mm footprint (9 ⁄₁₆ x 11 ⅞ in)
    • Unique offset design



    Robust stand in a smaller bench footprint for compact stirrers BDC2002 and BDC2010.  Chemical-resistant coated cast zinc-aluminum alloy base.

    Compare
  • Safety Stand A110

    Safety Stand

    Model A110

    • 711 mm (28 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Wide base and H configuration stability for bench top stirrers, including high torque line. Chemical resistant coating. Additional stand rod lengths, all 25 mm (1 in) diameter, are available.

    Compare
  • System Stand A112

    System Stand

    Model A112

    • 711 mm (28 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Able to support additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Diameter of the central rod is 25 mm (1 in).

    Compare
  • System Stand A113

    System Stand

    Model A113

    • 965 mm (38 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).

    Compare
  • System Stand A114

    System Stand

    Model A114

    • 1219 mm (48 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).

    Compare
  • Safety Stand Base A110BASE

    Safety Stand Base

    Model A110BASE

    • Base only
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Wide base and H configuration provide excellent stability for bench top stirrers, including high torque line. Chemical resistant coating.

    Compare
  • ROD28

    Stand Rod

    Model ROD28

    • 711 mm (28 in) length
    • 25 mm (1 in) diameter
    • 304 stainless steel



    Stand rod only.  Compatible with A110 stand base. Customize A113 or A114 stand with 711 mm (28 in) stand rod.

    Compare
  • ROD38

    Stand Rod

    Model ROD38

    • 965 mm (38 in) length
    • 25 mm (1 in) diameter
    • 304 stainless steel



    Stand rod only.  Compatible with A110 stand base. Customize A112 or A114 stand with 965 mm (38 in) stand rod.

    Compare
  • ROD48

    Stand Rod

    Model ROD48

    • 1219 mm (48 in) length
    • 25 mm (1 in) diameter
    • 304 stainless steel



    Stand rod only.  Compatible with A110 stand base. Customize A112 or A113 stand with 1219 mm (48 in) stand rod.

    Compare
  • Compare
  • Fastening Clamp A120

    Fastening Clamp

    Model A120

    • 12.5 mm (½ in) stirrer support rod capacity
    • 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Popular clamp for its durability and ease of use. Coated for protection from corrosion and chemical spills.

    Compare
  • Fastening Clamp A122

    Fastening Clamp

    Model A122

    • 16 mm (⅝ in) stirrer support rod capacity
    • 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Popular clamp designed to accommodate stirrer support rods up to 16 mm (⅝ in) diameter. Coated for protection from corrosion and chemical spills.

    Compare
  • A190

    Propeller & Shaft

    Model A190

    • 25 mm (1 in) dia
    • 400 mm (16 in) shaft
    • Axial flow



    Axial flow impeller effective for low shear mixing. Stainless steel blade secured to an 8 mm (⁵⁄₁₆ in) diameter shaft with set screws.

    Compare
  • A166

    Propeller & Shaft

    Model A166

    • 64 mm (2 ½ in) dia
    • 400 mm (16 in) shaft
    • Axial flow



    A popular choice for high speed, low viscosity stirring in wide range of applications. Stainless steel blade secured to an 8 mm (⁵⁄₁₆ in) diameter shaft with set screws.

    Compare
  • A130

    Crossed Blade

    Model A130

    • 50 mm (2 in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. High vortexing properties.

    Compare
  • A141

    Collapsible Blade

    Model A141

    • 10-90 mm (⅜ – 3 ½ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    For narrow neck vessels. Blades are pinned to an 8 mm (⁵⁄₁₆ in) diameter shaft, fanning out with agitation. For high speed, low viscosity mixing. High shear and moderate vortexing properties.

    Compare
  • A140

    Pivoting Blade

    Model A140

    • 60 mm (2 ⅜ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Straight blade is pinned to 8 mm (⁵⁄₁₆ in) diameter shaft, allowing it to pivot during agitation. For high speed, low viscosity mixing. Moderate shear and moderate vortexing properties.

    Compare
  • A231

    Straight Blade

    Model A231

    • 32 mm (1 ¼ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. Moderate vortexing properties.

    Compare
  • A131

    Straight Blade

    Model A131

    • 50 mm (2 in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. Moderate vortexing properties.

    Compare
  • A250

    Square Blade

    Model A250

    • 38 mm (1 ½ in) square
    • 400 mm (16 in) shaft
    • Tangential flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing of small volumes.

    Compare
  • A150

    Square Blade

    Model A150

    • 71 mm (2 ¾ in) square
    • 452 mm (17 13⁄₁₆ in) shaft
    • Tangential flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing of small volumes.

    Compare
  • U022

    Anchor Paddle

    Model U022

    • 51 x 51 mm (2 x 2 in)
    • 400 mm (16 in) shaft
    • Tangential flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing and can be used close to vessel wall.

    Compare
  • A183

    PTFE Anchor Paddle

    Model A183

    • 80 mm (3 ⅛ in) dia
    • 400 mm (16 in) shaft
    • Tangential flow



    PTFE blade attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, higher viscosity mixing, ideal for round bottom flasks.

    Compare
  • A185

    PTFE 4 Blade Pitched

    Model A185

    • 40 mm (1 ⁹⁄₁₆ in) dia
    • 400 mm (16 in) shaft
    • Axial flow



    Right hand rotation PTFE impeller with 45° pitched blades. Attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, low viscosity mixing.



    Compare
  • A180

    PTFE Collapsible

    Model A180

    • 40 mm (1 ⁹⁄₁₆ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    PTFE impeller for narrow neck vessels. PTFE blades attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, low viscosity mixing

    Compare
  • A165

    Pitched Blade Only

    Model A165

    • 64 mm (2 ½ in) dia
    • 8 mm (⁵⁄₁₆ in) bore
    • Axial flow



    Electropolished 316L cast stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection. This product replaces the Pitched Blade Propeller Model A161.

    Compare
  • A511

    Pitched Blade Only

    Model A511

    • 25 mm (1 in) dia
    • 8 mm (⁵⁄₁₆ in) bore
    • Axial flow



    Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.

    Compare
  • A521

    Pitched Blade Only

    Model A521

    • 38 mm (1 ½ in) dia
    • 8 mm (⁵⁄₁₆ in) bore
    • Axial flow



    Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.

    Compare
  • A531

    Pitched Blade Only

    Model A531

    • 50 mm (2 in) dia
    • 8 mm (⁵⁄₁₆ in) bore
    • Axial flow



    Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.

    Compare
  • A533

    Pitched Blade Only

    Model A533

    • 50 mm (2 in) dia
    • 9.5 mm (⅜ in) bore
    • Axial flow



    Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.

    Compare
  • A541

    Pitched Blade Only

    Model A541

    • 78 mm (3 in) dia
    • 8 mm (⁵⁄₁₆ in) bore
    • Axial flow



    Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.

    Compare
  • Compare
  • Straight Blade Only

    Model A163

    • 40 mm (1 ⁹⁄₁₆ in) dia
    • 8 mm (⁵⁄₁₆ in) bore
    • Radial flow



    Electropolished 316L stainless steel. For high shear, low viscosity mixing with moderate vortexing.

    Compare
  • Compare
  • Compare
  • A712

    Shaft 305 mm (12 in)

    Model A712

    • 8 mm (⁵⁄₁₆ in) dia
    • 305 mm (12 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore.  Excellent corrosion resistance.



    Compare
  • A713

    Shaft 305 mm (12 in)

    Model A713

    • 9.5 mm (⅜ in) dia
    • 305 mm (12 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A162

    Shaft 406 mm (16 in)

    Model A162

    • 8 mm (⁵⁄₁₆ in) dia
    • 406 mm (16 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore.  Excellent corrosion resistance.



    Compare
  • A722

    Shaft 457 mm (18 in)

    Model A722

    • 8 mm (⁵⁄₁₆ in) dia
    • 457 mm (18 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore.  Excellent corrosion resistance.



    Compare
  • A723

    Shaft 457 mm (18 in)

    Model A723

    • 9.5 mm (⅜ in) dia
    • 457 mm (18 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A733

    Shaft 508 mm (20 in)

    Model A733

    • 9.5 mm (⅜ in) dia
    • 508 mm (20 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A742

    Shaft 610 mm (24 in)

    Model A742

    • 8 mm (⁵⁄₁₆ in) dia
    • 610 mm (24 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore.  Excellent corrosion resistance.



    Compare
  • A743

    Shaft 610 mm (24 in)

    Model A743

    • 9.5 mm (⅜ in) dia
    • 610 mm (24 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A753

    Shaft 762 mm (30 in)

    Model A753

    • 9.5 mm (⅜ in) dia
    • 762 mm (30 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in). Excellent corrosion resistance.

    Compare

You may also like…

  • Compact Stand A210

    Compact Stand

    Model A210

    • 610 mm (24 in) stand rod
    • 240 L x 301.3 W mm footprint (9 ⁄₁₆ x 11 ⅞ in)
    • Unique offset design



    Robust stand in a smaller bench footprint for compact stirrers BDC2002 and BDC2010.  Chemical-resistant coated cast zinc-aluminum alloy base.

    Compare
  • Fastening Clamp A120

    Fastening Clamp

    Model A120

    • 12.5 mm (½ in) stirrer support rod capacity
    • 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Popular clamp for its durability and ease of use. Coated for protection from corrosion and chemical spills.

    Compare
  • A166

    Propeller & Shaft

    Model A166

    • 64 mm (2 ½ in) dia
    • 400 mm (16 in) shaft
    • Axial flow



    A popular choice for high speed, low viscosity stirring in wide range of applications. Stainless steel blade secured to an 8 mm (⁵⁄₁₆ in) diameter shaft with set screws.

    Compare
  • A collection of our most popular products.

    We know your time is precious, so we have collected a list of our most popular products to get you started.

  • Delivering safe, reliable products since 1955.

    We are proud of the products we make and are confident you will love them too.

  • News

    Find out whats going on at Caframo, events we will be attending and much much more.

  • Service & Support

    Find all the help you need for your Caframo Lab Solutions products.

  • Find a Distributor

    Discover where you can buy Caframo Lab Solutions products.
