3 Blade Turbine Only

Model A553

A553
  • A553

3 Blade Turbine Only

Model A553

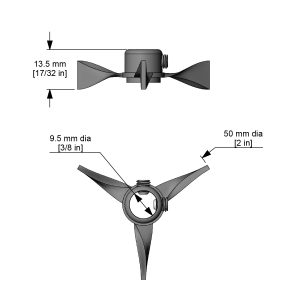

Turbine blade of 50 mm (2 in) diameter, composed of electropolished 316L stainless steel. The 9.5 mm (⅜ in) bore is compatible with Caframo shafts A713, A723, A733, A743, and A753.  Set screws included.  For high shear mixing with moderate vortexing.


Flow Pattern Radial
Bore Diameter 9.5 mm (⅜ in)
Blade Diameter 50 mm (2 in)
Material Electropolished 316L stainless steel
Weight 15.9 g (0.6 oz)
A553

Turbine 3 blade propeller 50 mm (2 in) blade only, with 9.5 mm (⅜ in) bore, includes set screws.

A551

Turbine 3 blade propeller 50 mm (2 in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws.

Use with: Shafts of 9.5 mm (⅜ in) diameter – Caframo A713,  A723,  A733,  A743,  A753

  • Features
    • Electropolished 316L stainless steel
    • Turbine 3 blade propeller
  • Benefits
    • Chemically inert and corrosion resistant
    • High shear with moderate vortexing characteristics
  • A713

    Shaft 305 mm (12 in)

    Model A713

    • 9.5 mm (⅜ in) dia
    • 305 mm (12 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A723

    Shaft 457 mm (18 in)

    Model A723

    • 9.5 mm (⅜ in) dia
    • 457 mm (18 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A733

    Shaft 508 mm (20 in)

    Model A733

    • 9.5 mm (⅜ in) dia
    • 508 mm (20 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A743

    Shaft 610 mm (24 in)

    Model A743

    • 9.5 mm (⅜ in) dia
    • 610 mm (24 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A753

    Shaft 762 mm (30 in)

    Model A753

    • 9.5 mm (⅜ in) dia
    • 762 mm (30 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in). Excellent corrosion resistance.

    Compare
