System Stand

Model A114

System Stand A114
  • System Stand A114

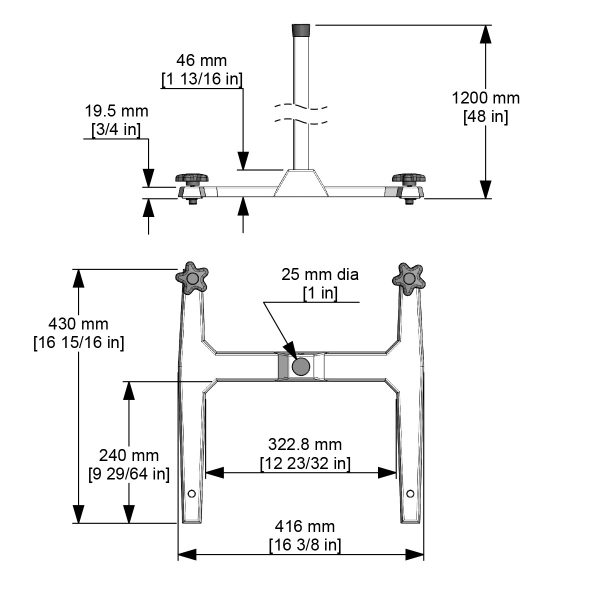

  • System Stand A112 Dimensions

System Stand

Model A114

Our popular safety stand adapted to support additional apparatus for process monitoring and chemical synthesis. The base accommodates a central 25 mm (1 in) diameter stand rod, and up to two additional 16 mm (⅝ in) diameter stand rods A300 (purchased separately).  Portable and adaptable to address changing work spaces, equipment, and priorities. Lengths of the central stand rod is 1219 mm (48 in). The cast zinc-aluminum alloy base is coated for protection from corrosion and chemical spills.


Rod Diameter 25 mm (1 in)
Rod Length 1219 mm (48 in)
Rod Material 304 stainless steel tube
Weight 5 kg (11 lb)
Base Material Cast zinc-aluminum alloy coated with chemical resistant epoxy paint
Base Footprint 416 W x 430 L mm (16 ⅜ x 16 15⁄₁₆ in)
A112

System stand with two threaded holes for A300 rod, 711 x 25 mm (28 x 1 in) rod, stand base and allen key.

A113

System stand with two threaded holes for A300 rod, 965 x 25 mm (38 x 1 in) rod, stand base and allen key.

A114

System stand with two threaded holes for A300 rod, 1219 x 25 mm (48 x 1 in) rod, stand base and allen key.

A300

Accessory rod 711 x 16 mm (28 x ⅝ in), threaded with nut.

Use with:  BDC1850, BDC3030, BDC6015, BDC2002, or BDC2010 Overhead Stirrers

Compatible clamps: A120, A122

  • Features
    • Wide base and H configuration
    • Cast zinc-aluminum alloy coated with chemical resistant epoxy paint
    • Compatible with three lengths of stand rods
    • Rods interchangeable using same allen key
    • Threaded holes in base for installation of A300 rod
  • Benefits
    • Excellent stability
    • Chemical and corrosion resistant - durable and easy to clean
    • Flexibility to mount stirrer higher for taller vessels and reaction systems
    • Easy to adapt to process needs
    • Option for one or two A300 rods to support additional apparatus such as manifolds and condensers
  • ROD28

    Stand Rod

    Model ROD28

    • 711 mm (28 in) length
    • 25 mm (1 in) diameter
    • 304 stainless steel



    Stand rod only.  Compatible with A110 stand base. Customize A113 or A114 stand with 711 mm (28 in) stand rod.
