Shaft 406 mm (16 in)
Model A162
Shaft 406 mm (16 in)
Model A162
Use with any impeller blade having an 8 mm (⁵⁄₁₆ in) diameter bore. Shaft is constructed of passivated 316L stainless steel for enhanced corrosion protection. 406 mm (16 in) length.
| Shaft Length | 406 mm (16 in) |
| Shaft Diameter | 8 mm (⁵⁄₁₆ in) |
| Shaft Material | Passivated 316L stainless steel |
| A712 | Shaft - 305 mm (12 in) length x 8 mm (⁵⁄₁₆ in) diameter, 110 g (0.2 lb) | ||||||||
| A162 | Shaft - 406 mm (16 in) length x 8 mm (⁵⁄₁₆ in) diameter, 150 g (0.3 lb) | ||||||||
| A722 | Shaft - 457 mm (18 in) length x 8 mm (⁵⁄₁₆ in) diameter, 180 g (0.4 lb) | ||||||||
| A742 | Shaft - 610 mm (24 in) length x 8 mm (⁵⁄₁₆ in) diameter, 240 g (0.5 lb) | ||||||||
Use with: Any blade with an 8 mm (⁵⁄₁₆ in) diameter bore | |||||||||
Features
- Passivated 316L stainless steel
- 8 mm (⁵⁄₁₆ in) diameter
Benefits
- Chemically inert and corrosion resistant
- Fits blades having 8 mm (⁵⁄₁₆ in) bore and majority of bench top overhead stirrer chucks

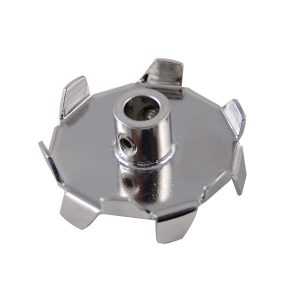

Dispersion Blade Only
Model A164
- 48 mm (1 ⅞ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316 stainless steel. For high shear mixing at medium to high speeds.
Straight Blade Only
Model A163
- 40 mm (1 ⁹⁄₁₆ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear, low viscosity mixing with moderate vortexing.
3 Blade Turbine Only
Model A551
- 50 mm (2 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear mixing with moderate vortexing.
Pitched Blade Only
Model A165
- 64 mm (2 ½ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L cast stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection. This product replaces the Pitched Blade Propeller Model A161.
Pitched Blade Only
Model A511
- 25 mm (1 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Pitched Blade Only
Model A521
- 38 mm (1 ½ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Pitched Blade Only
Model A531
- 50 mm (2 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Pitched Blade Only
Model A541
- 78 mm (3 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
