Pivoting Blade

Model A140

A140
  • A140

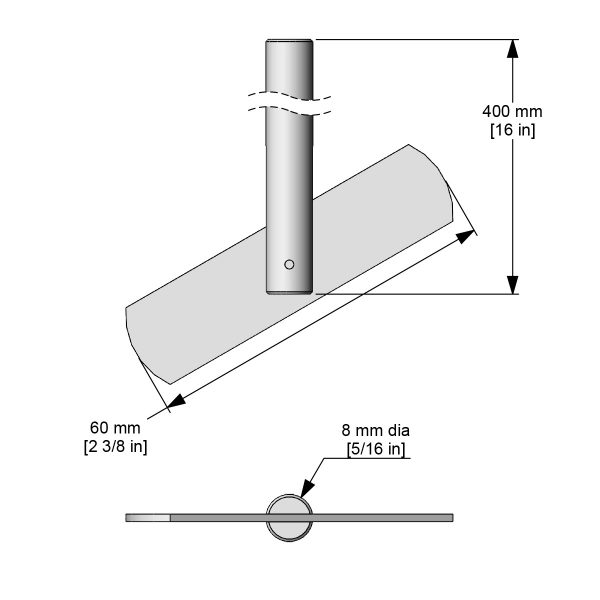

  • A140_Shaded Dimensional Drawing

Pivoting Blade

Model A140

This radial flow impeller is effective for high speed, low viscosity mixing. The 60 mm (2 ⅜ in) diameter straight blade is pinned to an 8 mm (⁵⁄₁₆ in) diameter shaft, allowing blade to pivot with agitation. Blade and shaft are electropolished 316L stainless steel. A moderate shear impeller with moderate vortexing properties, creating a vortex in 19 L (5 gal) of water at 800 rpm.


Flow Pattern Radial
Blade Diameter 60 mm (2 ⅜ in)
Shaft Length 400 mm (16 in)
Shaft Diameter 8 mm (⁵⁄₁₆ in)
Material Electropolished 316L stainless steel
Weight 126 g (0.3 lb)
A140

Straight blade impeller, 60 mm (2 ⅜ in) diameter blade, pinned to shaft

Use with: BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 overhead stirrers

  • Features
    • Electropolished 316L stainless steel
    • Pinned to shaft
  • Benefits
    • Chemically inert and corrosion resistant
    • One piece - quick to insert and begin mixing
