Square Blade

Model A250

A250
  • A250

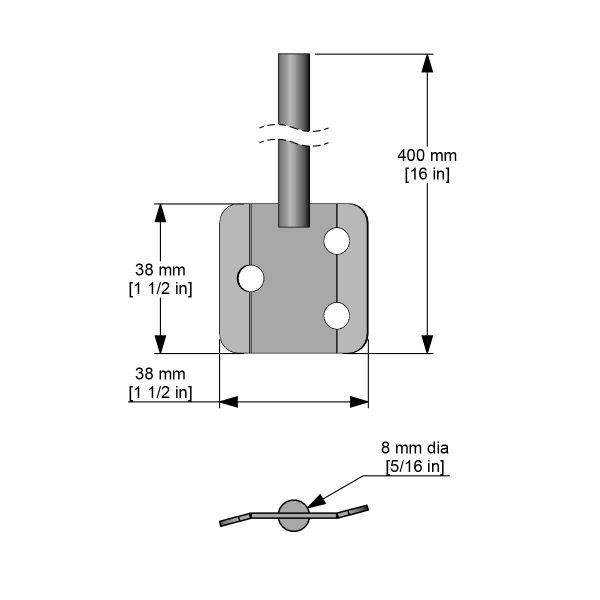

  • A250 ShadedDimensional Drawing

Square Blade

Model A250

This tangential flow impeller is effective for low speed, high viscosity mixing. The 38 mm (1 ½ in) square blade is welded to an 8 mm (⁵⁄₁₆ in) diameter shaft, all electropolished 316L stainless steel. For stirring small volumes of viscous product.


Flow Pattern Tangential
Blade Diameter 38 mm (1 ½ in) square blade
Shaft Length 400 mm (16 in)
Shaft Diameter 8 mm (⁵⁄₁₆ in)
Material Electropolished 316L stainless steel
Weight 159 g (0.3 lb)
A250

Square blade impeller, 38 mm (1 ½ in) square blade, welded to shaft

Use with: BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 overhead stirrers

  • Features
    • Tangential flow
    • Electropolished 316L stainless steel
    • Welded to shaft
  • Benefits
    • Effective for low speed high viscosity mixing
    • Chemically inert and corrosion resistant
    • One piece - quick to insert and begin mixing
