Pitched Blade Only

Model A533

A533
  • A533

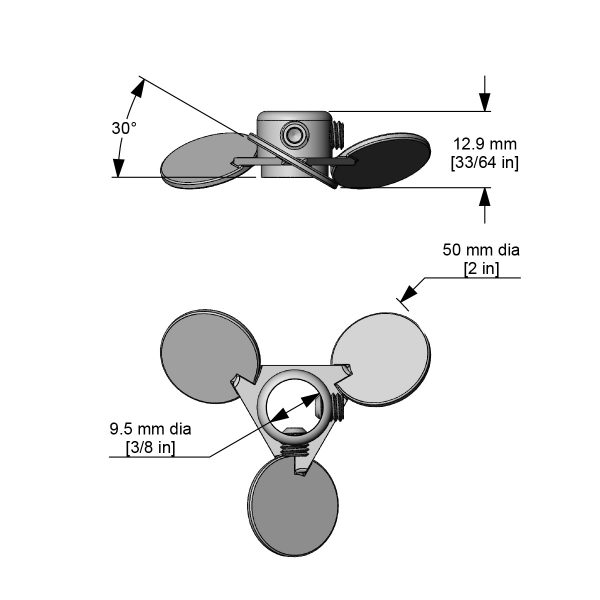

  • A533 Dimensional Drawing

Pitched Blade Only

Model A533

Pitched blade propeller of 50 mm (2 in) diameter, composed of electropolished 316L stainless steel. The 9.5 mm (⅜ in) bore is compatible with Caframo shafts A713, A723, A733, A743, and A753.  Set screws included.  For low shear, high top-to-bottom pumping capacity with high gas injection.


Flow Pattern Axial
Bore Diameter 9.5 mm (⅜ in)
Blade Diameter 50 mm (2 in)
Blade Rotation Left hand
Material Electropolished 316L stainless steel
Weight 12.9 g (0.46 oz)
A511

Pitched blade propeller 25 mm (1 in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws.

A521

Pitched blade propeller 38 mm (1 ½ in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws.

A531

Pitched blade propeller 50 mm (2 in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws.

A533

Pitched blade propeller 50 mm (2 in) blade only, with 9.5 mm (⅜ in) bore, includes set screws.

A165

Cast pitched blade propeller 64 mm (2 ½ in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws.

A541

Pitched blade propeller 78 mm (3 in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws.

Use with: Shafts of 9.5 mm (⅜ in) diameter – Caframo  A713,  A723,  A733,  A743,  A753

  • Features
    • Electropolished 316L stainless steel
    • Pitched blade propeller
  • Benefits
    • Chemically inert and corrosion resistant
    • Scale up advantage if propeller used in production
  • A713

    Shaft 305 mm (12 in)

    Model A713

    • 9.5 mm (⅜ in) dia
    • 305 mm (12 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A723

    Shaft 457 mm (18 in)

    Model A723

    • 9.5 mm (⅜ in) dia
    • 457 mm (18 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A733

    Shaft 508 mm (20 in)

    Model A733

    • 9.5 mm (⅜ in) dia
    • 508 mm (20 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A743

    Shaft 610 mm (24 in)

    Model A743

    • 9.5 mm (⅜ in) dia
    • 610 mm (24 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

    Compare
  • A753

    Shaft 762 mm (30 in)

    Model A753

    • 9.5 mm (⅜ in) dia
    • 762 mm (30 in) length
    • 316L stainless steel



    Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in). Excellent corrosion resistance.

    Compare
