Anchor Paddle

Model U022

U022
  • U022

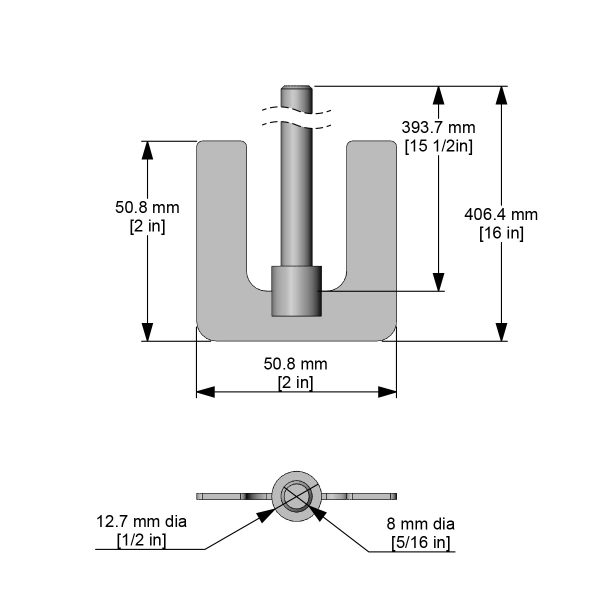

  • U022 ShadedDimensional Drawing

Anchor Paddle

Model U022

This tangential flow impeller is effective for low speed, high viscosity mixing. The 51 x 51 mm (2 x 2 in) ­anchor blade is welded to an 8 mm (⁵⁄₁₆ in) diameter shaft, all electropolished 316L stainless steel. Sometimes referred to as a “sweep”, the high shear at the edges makes it a good choice to use close to the vessel wall.


Flow Pattern Tangential
Blade Diameter 51 x 51 mm (2 x 2 in) anchor blade
Shaft Length 400 mm (16 in)
Shaft Diameter 8 mm (⁵⁄₁₆ in)
Material Electropolished 316L stainless steel
Weight 180 g (0.4 lb)
U022

Anchor impeller, 51 x 51 mm (2 x 2 in) blade, welded to shaft

Use with: BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 overhead stirrers

  • Features
    • Tangential flow
    • Electropolished 316L stainless steel
    • Welded to shaft
  • Benefits
    • Effective for low speed high viscosity mixing
    • Chemically inert and corrosion resistant
    • One piece - quick to insert and begin mixing
