Dispersion Blade Only

Model A164

A164
  • A164

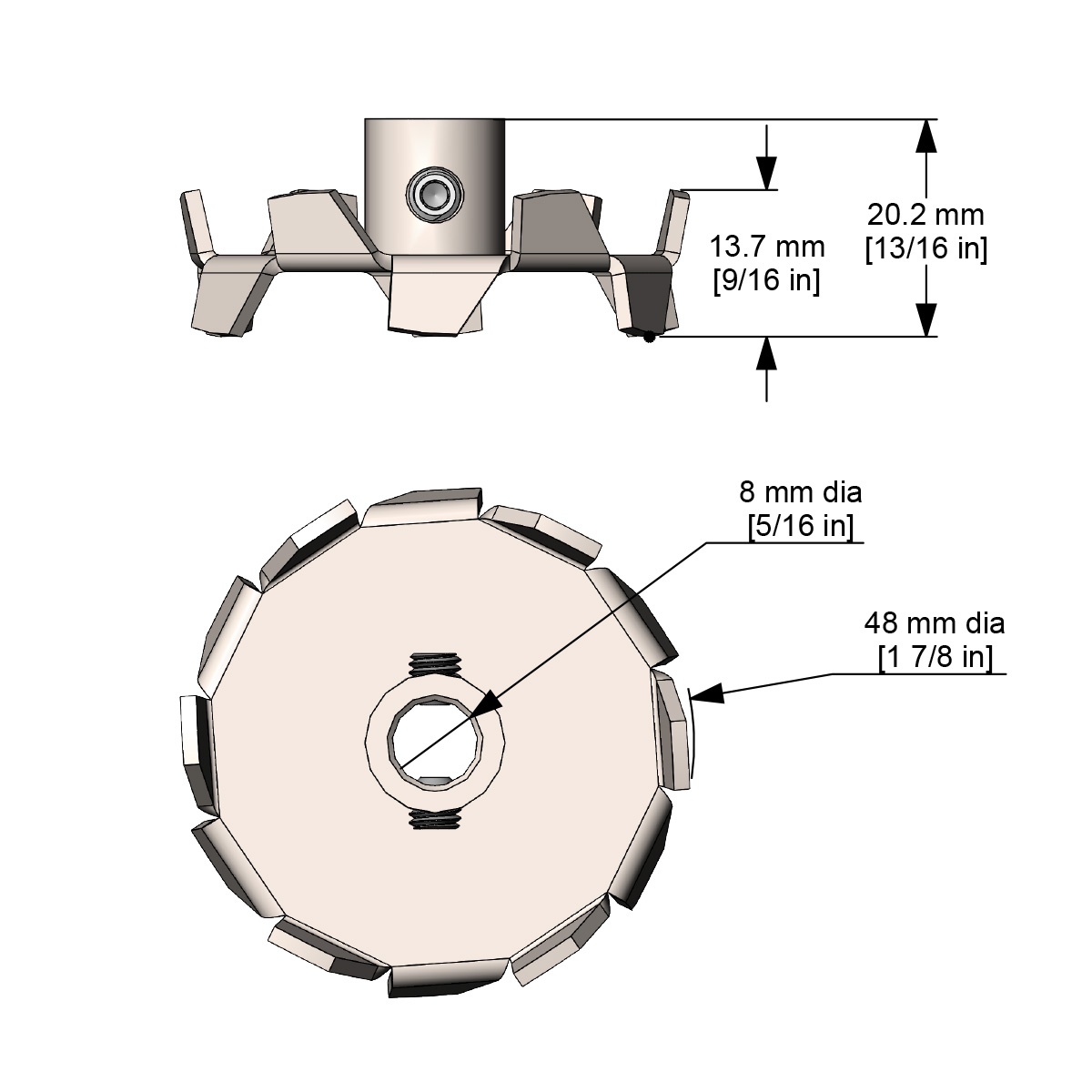

  • A164_Shaded Dimensional Drawing

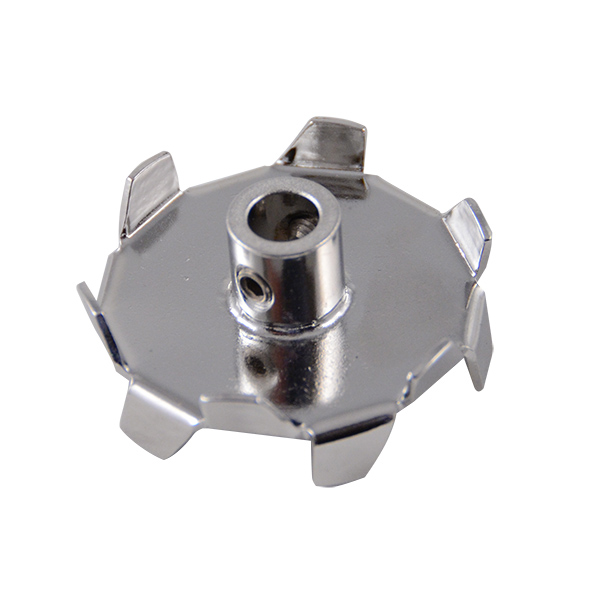

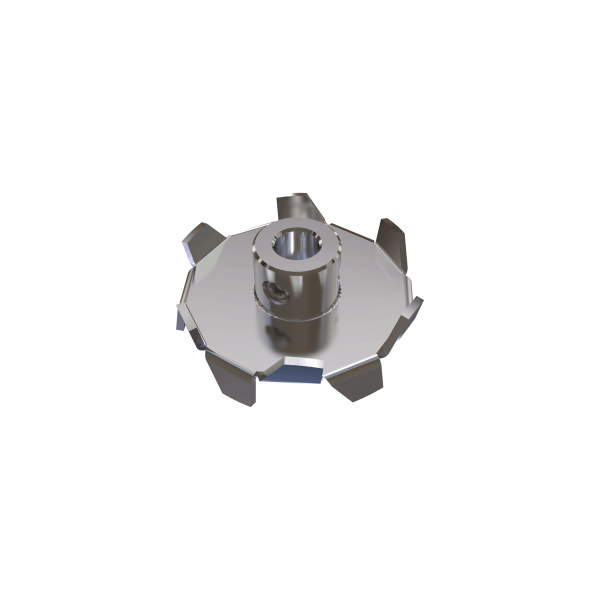

Dispersion Blade Only

Model A164

Dispersion blade of 48 mm (1 ⅞ in) diameter, composed of electropolished 316L stainless steel. The 8 mm (⁵⁄₁₆ in) bore is compatible with all Caframo shafts.  Set screws included.  For high shear mixing at medium to high speeds.


Flow Pattern Laminar
Bore Diameter 8 mm (⁵⁄₁₆ in)
Blade Diameter 48 mm (1 ⅞ in)
Material Electropolished 316L stainless steel
Weight 38.4 g (1.35 oz)
A164

Precision dispersion 48 mm (1 ⅞ in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws

Use with: Any Caframo shaft

Note: This blade is included in the A600SET high speed collet set.

  • Features
    • Electropolished 316L stainless steel
    • High shear
  • Benefits
    • Chemically inert and corrosion resistant
    • Broken particles are dispersed by the laminar flow set up by the blade
