ROD38
  • ROD38

Stand Rod

Model ROD38

Stand rod only, compatible with A110 stand base. Customize your A112 or A114 stand to fit your apparatus. Stand rod composed of 304 stainless steel, 965 mm (38 in) long and 25 mm (1 in) diameter.

Also available in additional lengths: ROD28 is 711 mm (28 in) and ROD48 is 1219 mm (48 in).

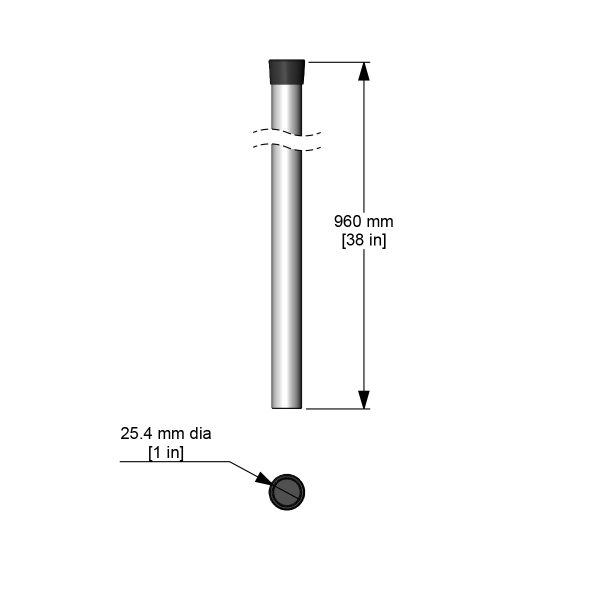

Rod Diameter 25 mm (1 in)
Rod Length 965 mm (38 in)
Rod Material 304 stainless steel tube
ROD28

Stand rod only, 711 mm (28 in) length.

ROD38

Stand rod only, 965 mm (38 in) length.

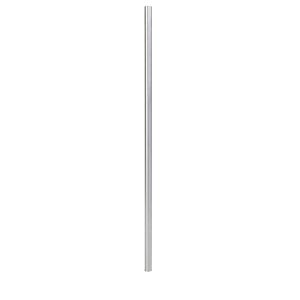

ROD48

Stand rod only, 1219 mm (48 in) length.

A110BASE

Safety stand base and allen key. Order rod separately (Parts ROD28, ROD38, ROD48)

A110

Safety stand with 711 mm (28 in) rod, stand base and allen key.

Compatible with:  A110BASE, A110, A112, A113, A114

  • Features
    • 304 stainless steel
    • Compatible in A110 stand base
    • Installed using base allen key
  • Benefits
    • Chemically inert and corrosion resistant
    • Flexibility to customize stand for taller vessels and chemical reaction systems
    • Easy to adapt to apparatus needs
  • Safety Stand Base A110BASE

    Safety Stand Base

    Model A110BASE

    • Base only
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Wide base and H configuration provide excellent stability for bench top stirrers, including high torque line. Chemical resistant coating.

    Compare
  • Safety Stand A110

    Safety Stand

    Model A110

    • 711 mm (28 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Wide base and H configuration stability for bench top stirrers, including high torque line. Chemical resistant coating. Additional stand rod lengths, all 25 mm (1 in) diameter, are available.

    Compare
  • System Stand A112

    System Stand

    Model A112

    • 711 mm (28 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Able to support additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Diameter of the central rod is 25 mm (1 in).

    Compare

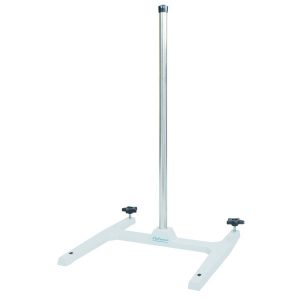

  • System Stand A113

    System Stand

    Model A113

    • 965 mm (38 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).

    Compare
  • System Stand A114

    System Stand

    Model A114

    • 1219 mm (48 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).

    Compare
  • Fastening Clamp A120

    Fastening Clamp

    Model A120

    • 12.5 mm (½ in) stirrer support rod capacity
    • 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Popular clamp for its durability and ease of use. Coated for protection from corrosion and chemical spills.

    Compare

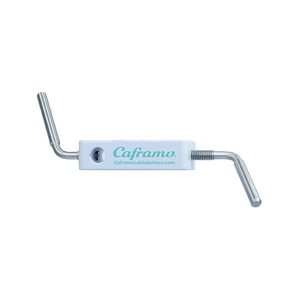

  • Fastening Clamp A122

    Fastening Clamp

    Model A122

    • 16 mm (⅝ in) stirrer support rod capacity
    • 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Popular clamp designed to accommodate stirrer support rods up to 16 mm (⅝ in) diameter. Coated for protection from corrosion and chemical spills.

    Compare

You may also like…

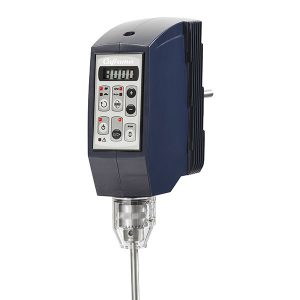

  • Universal 3030
