Stands & Clamps
Product FiltersShowing 1–12 of 13 results
Safety Stand
Model A110
- 711 mm (28 in) stand rod
- 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
- Cast zinc-aluminum alloy
Wide base and H configuration stability for bench top stirrers, including high torque line. Chemical resistant coating. Additional stand rod lengths, all 25 mm (1 in) diameter, are available.
Compact Stand
Model A210
- 610 mm (24 in) stand rod
- 240 L x 301.3 W mm footprint (9 ⁷⁄₁₆ x 11 ⅞ in)
- Unique offset design
Robust stand in a smaller bench footprint for compact stirrers BDC2002 and BDC2010. Chemical-resistant coated cast zinc-aluminum alloy base.

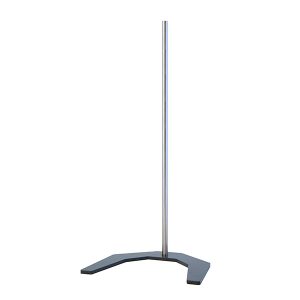

Petite Stand
Model A215
- 500 mm (19 11⁄₁₆ in) rod
- 190 W x 240 L mm (7 ⅓ x 9 ⅜ in)
- Mild steel base
Portable support stand for Caframo’s BDC250 Petite Stirrer. The base is coated for protection from corrosion and chemical spills. Rod diameter is 10 mm (⅜ in).
System Stand
Model A112
- 711 mm (28 in) stand rod
- 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
- Two threaded holes for A300 support rods
Able to support additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Diameter of the central rod is 25 mm (1 in).
System Stand
Model A113
- 965 mm (38 in) stand rod
- 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
- Two threaded holes for A300 support rods
Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).
System Stand
Model A114
- 1219 mm (48 in) stand rod
- 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
- Two threaded holes for A300 support rods
Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).
Safety Stand Base
Model A110BASE
- Base only
- 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
- Cast zinc-aluminum alloy
Wide base and H configuration provide excellent stability for bench top stirrers, including high torque line. Chemical resistant coating.
Stand Rod
Model ROD28
- 711 mm (28 in) length
- 25 mm (1 in) diameter
- 304 stainless steel
Stand rod only. Compatible with A110 stand base. Customize A113 or A114 stand with 711 mm (28 in) stand rod.

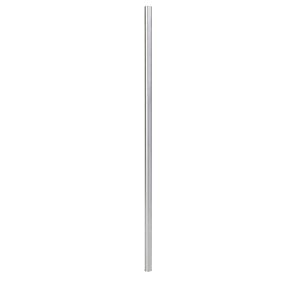

Stand Rod
Model ROD38
- 965 mm (38 in) length
- 25 mm (1 in) diameter
- 304 stainless steel
Stand rod only. Compatible with A110 stand base. Customize A112 or A114 stand with 965 mm (38 in) stand rod.
Stand Rod
Model ROD48
- 1219 mm (48 in) length
- 25 mm (1 in) diameter
- 304 stainless steel
Stand rod only. Compatible with A110 stand base. Customize A112 or A113 stand with 1219 mm (48 in) stand rod.

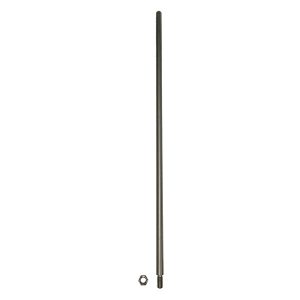

Accessory Rod
Model A300
- 711 mm (28 in) length
- 16 mm (⅝ in) diameter
- 303 stainless steel
Accessory rod only, compatible with A112, A113, and A114 stands.
Fastening Clamp
Model A120
- 12.5 mm (½ in) stirrer support rod capacity
- 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
- Cast zinc-aluminum alloy
Popular clamp for its durability and ease of use. Coated for protection from corrosion and chemical spills.
