Shaft 305 mm (12 in)
Model A713
Shaft 305 mm (12 in)
Model A713

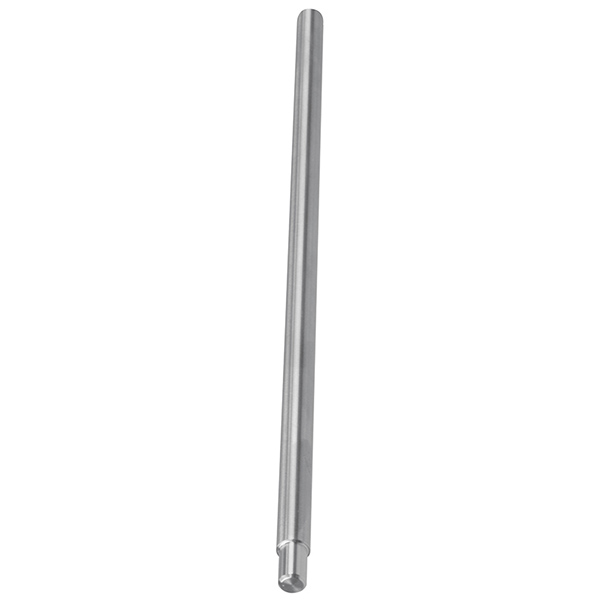

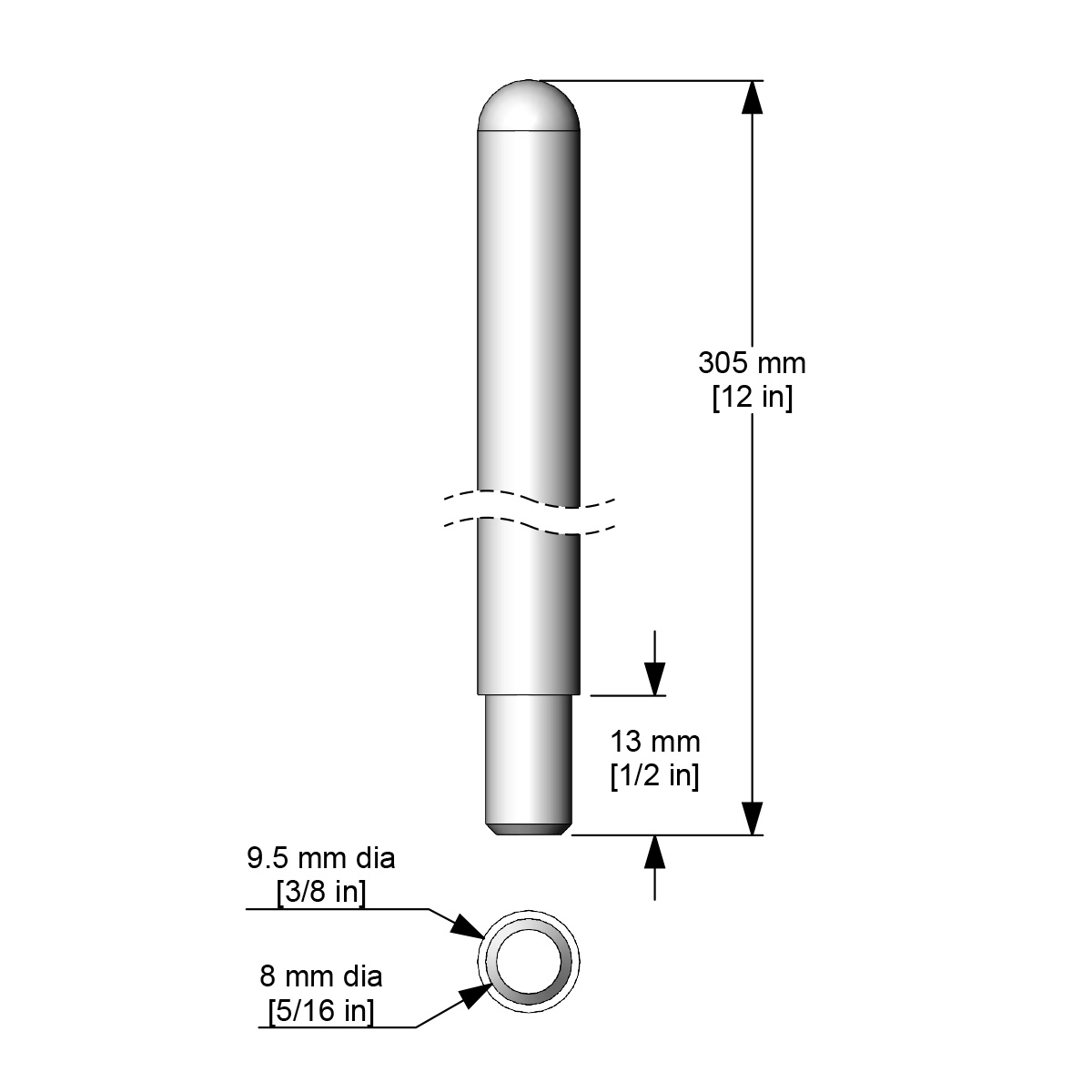

Shaft of 9.5 mm (⅜ in) diameter with a turned down 13 x 8 mm (½ x ⁵⁄₁₆ in) end. Compatible with impeller blades having bores of either 9.5 mm (⅜ in) or 8 mm (⁵⁄₁₆ in) diameter. Shaft is constructed of passivated 316L stainless steel for enhanced corrosion protection. 305 mm (12 in) length.
Shaft Length | 305 mm (12 in) |
Shaft Diameter | 9.5 mm (⅜ in) |
Shaft Material | Passivated 316L stainless steel |
A713 | Shaft - 305 mm (12 in) length x 9.5 mm (⅜ in) diameter, 180 g (0.4 lb) | ||||||||
A723 | Shaft - 457 mm (18 in) length x 9.5 mm (⅜ in) diameter, 250 g (0.5 lb) | ||||||||
A733 | Shaft - 508 mm (20 in) length x 9.5 mm (⅜ in) diameter, 280 g (0.6 lb) | ||||||||
A743 | Shaft - 610 mm (24 in) length x 9.5 mm (⅜ in) diameter, 340 g (0.7 lb) | ||||||||
A753 | Shaft - 762 mm (30 in) length x 9.5 mm (⅜ in) diameter, 430 g (0.9 lb) | ||||||||
Use with: Any Caframo blade | |||||||||
Note: All shafts have a turned down 13 x 8 mm (½ x ⁵⁄₁₆ in) end |
Features
- Passivated 316L stainless steel
- 9.5 mm (⅜ in) diameter shaft with 8 mm (⁵⁄₁₆ in) turned down end
Benefits
- Chemically inert and corrosion resistant
- Accommodates both 9.5 mm (⅜ in) and 8 mm (⁵⁄₁₆ in) impeller bores
CompareDispersion Blade Only
Model A164
- 48 mm (1 ⅞ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316 stainless steel. For high shear mixing at medium to high speeds.
CompareStraight Blade Only
Model A163
- 40 mm (1 ⁹⁄₁₆ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear, low viscosity mixing with moderate vortexing.
Compare3 Blade Turbine Only
Model A551
- 50 mm (2 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear mixing with moderate vortexing.
Compare3 Blade Turbine Only
Model A553
- 50 mm (2 in) dia
- 9.5 mm (⅜ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear mixing with moderate vortexing.
ComparePitched Blade Only
Model A165
- 64 mm (2 ½ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L cast stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection. This product replaces the Pitched Blade Propeller Model A161.
ComparePitched Blade Only
Model A511
- 25 mm (1 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
ComparePitched Blade Only
Model A521
- 38 mm (1 ½ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
ComparePitched Blade Only
Model A531
- 50 mm (2 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
ComparePitched Blade Only
Model A533
- 50 mm (2 in) dia
- 9.5 mm (⅜ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
ComparePitched Blade Only
Model A541
- 78 mm (3 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
