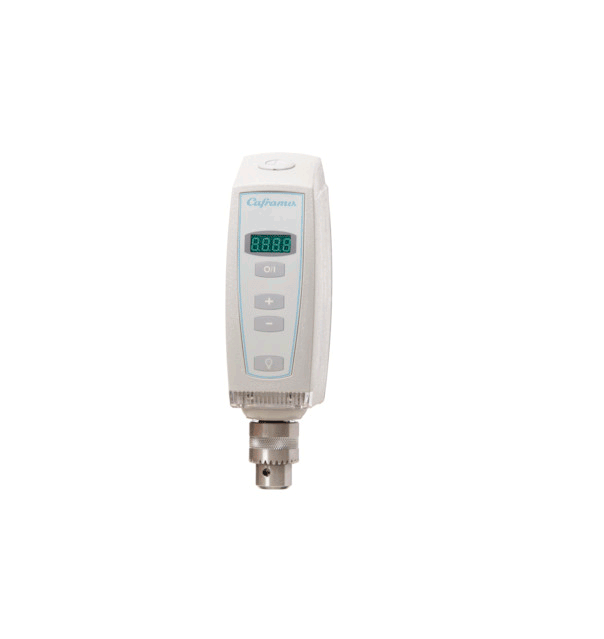

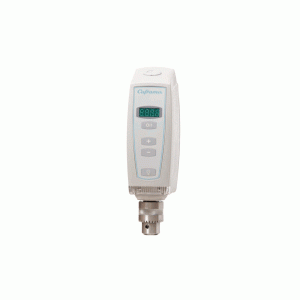

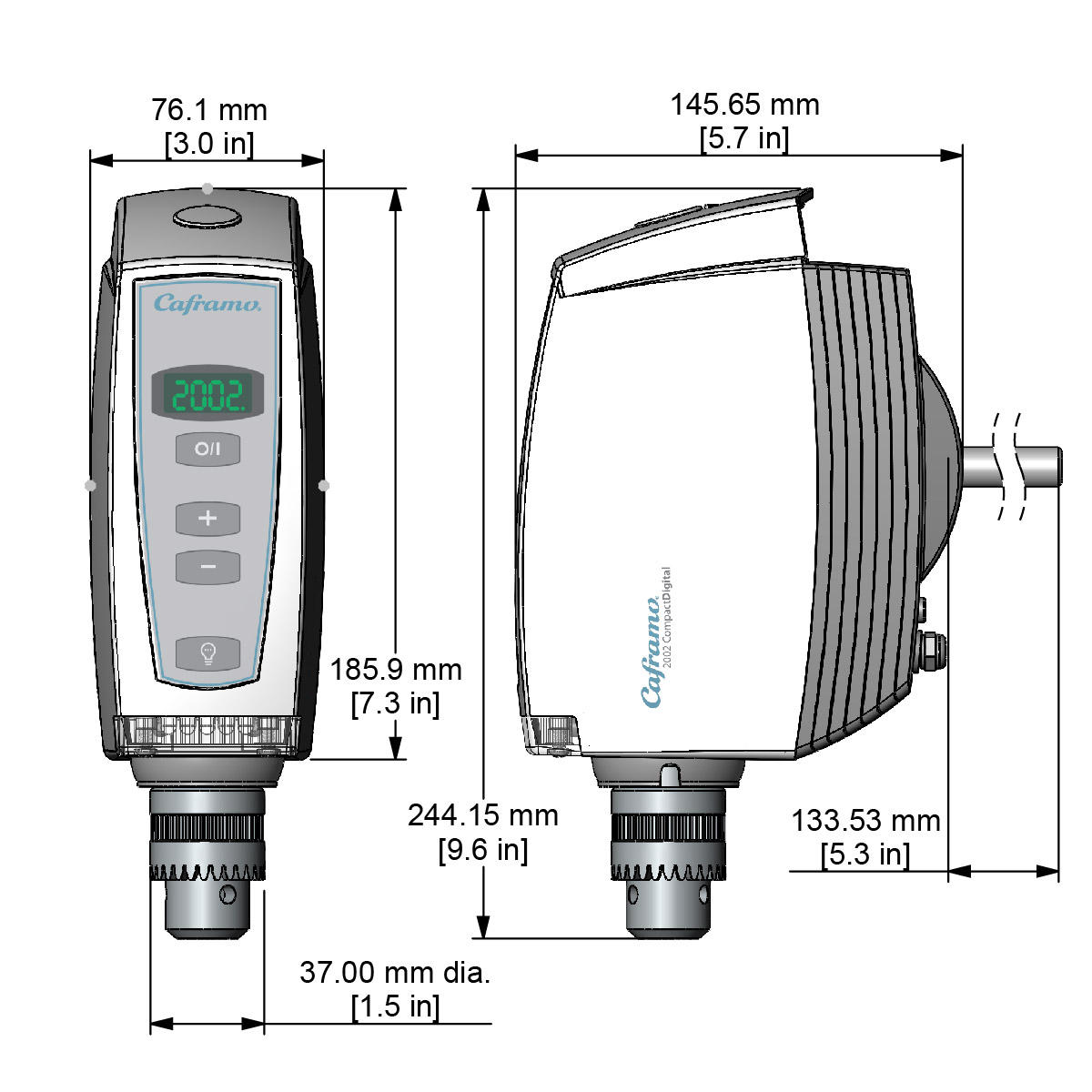

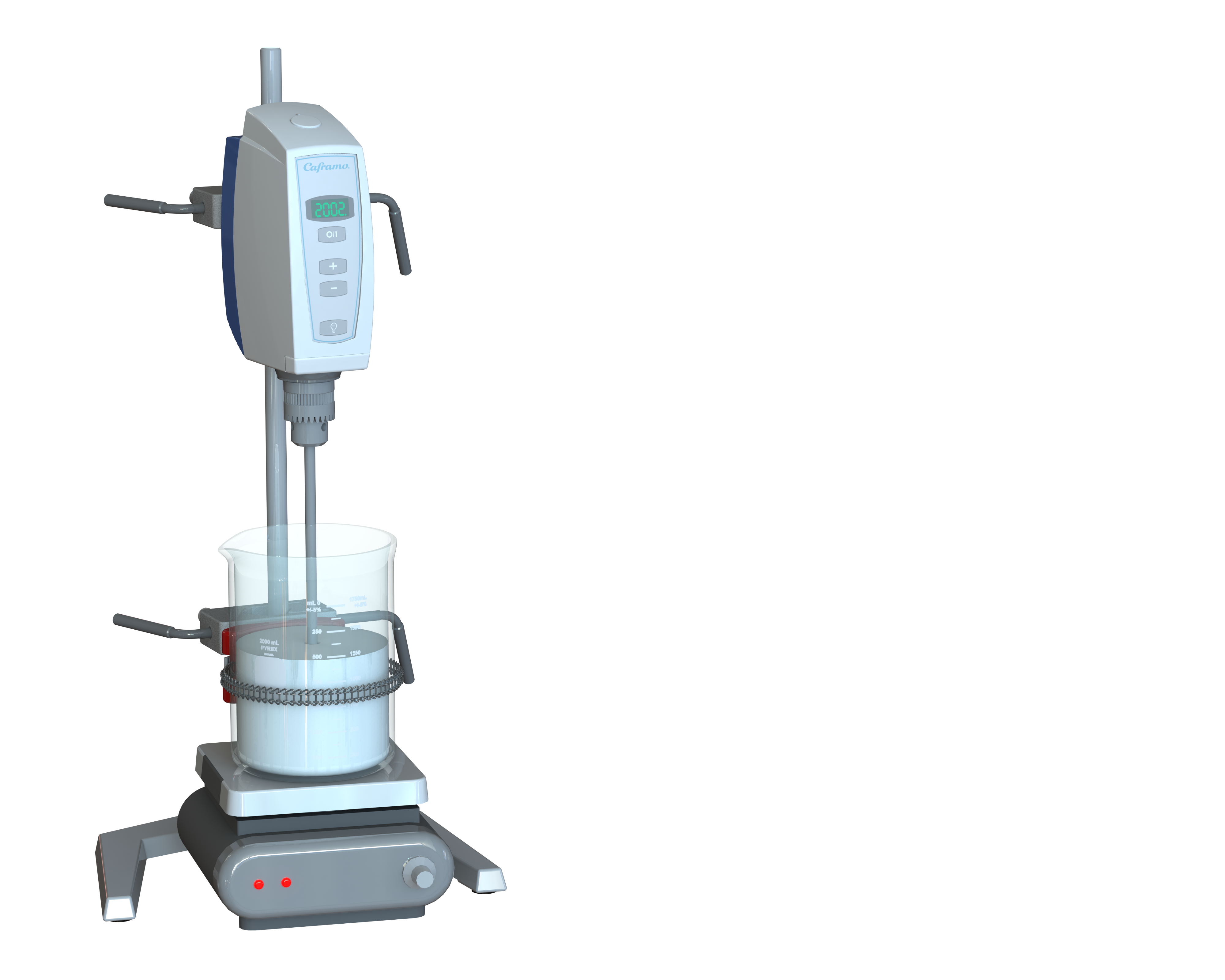

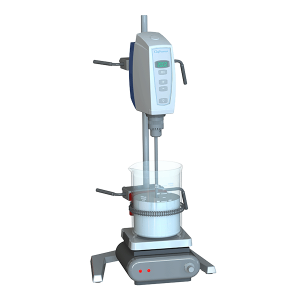

Compact Digital
Model BDC2002
Compact Digital
Model BDC2002
Caframo’s BDC2002 offers ultimate versatility and maximizes productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. Included in each purchase: Overhead stirrer motor, chuck, chuck key, support rod, external power supply, grounded power cord, manual in four languages (English, French, Spanish and German) and three year warranty.
| Speed | 40-2002 rpm |
| Volume Maximum | 25 L (6.5 US Gallons) |
| Viscosity Maximum | 15,000 mPas (15,000 cP) |
| Torque Maximum | 70 Ncm (6 in-lbs = 100 in-oz) |
| Output Power | 40 Watts (1/18 hp) |
| Speed Display | Yes |
| Speed Accuracy | ± 1 rpm or ± 3% of reading |
| Torque Display | No |
| Zero Torque | No |
| Timer | No |
| Through Shaft | Yes |
| Chuck Maximum Shaft Diameter | 10 mm (⅜ in) |
| Chuck Guard | Available |
| Rotation Direction | Clockwise only |
| Auto Start | Yes |
| Housing | Epoxy-coated zinc |
| Weight | Power Supply: 0.5 kg (1 lb), Stirrer: 3.0 kg (7 lb) |
| IP Rating | IP42 |
| Voltage | 100-240 volt must use Caframo power supply |
| Frequency | 50/60 Hz |
| Ambient Temperature Operation | 5-40 °C (41-104 °F) |
| Relative Humidity Operation | 80 % |
| Approvals | CSA listed to Canada and US standards |
| Warranty | 3 years |
| BDC2002 | Overhead stirrer motor 100-240 volts, 50/60 Hz. Includes support rod, chuck, chuck key, external power supply, grounded North American power cord, and printed manual. | ||||||||
| BDC2002U1 | Overhead stirrer motor 220-240 volts, 50/60 Hz. Includes support rod, chuck, chuck key, external power supply, UK and EU cord sets, and printed manual. | ||||||||
| BDC2002AU | Overhead stirrer motor 220-240 volts, 50/60 Hz. Includes support rod, chuck, chuck key, external power supply, Australia cord set. and printed manual. | ||||||||
Remember to order a stand, clamp and impeller for a complete system to start mixing. | |||||||||
Features
- Stirlight™
- Sealed housing
- Brushless DC motor
- Digital display
- Through shaft
- Auto Start
- Electronic digital control
Benefits
- Allows monitoring of mixing properties of batches
- Keeps liquids and moisture out in aggressive environments
- High efficiency (less heat)
- Precise speed adjustment
- Easy impeller adjustment saves time
- Resumes stirring at last set speed automatically when power is restored
- Set speed is maintained as viscosity changes
- Automatic overload protection
Compact Stand
Model A210
- 610 mm (24 in) stand rod
- 240 L x 301.3 W mm footprint (9 ⁷⁄₁₆ x 11 ⅞ in)
- Unique offset design
Robust stand in a smaller bench footprint for compact stirrers BDC2002 and BDC2010. Chemical-resistant coated cast zinc-aluminum alloy base.
Fastening Clamp
Model A120
- 12.5 mm (½ in) stirrer support rod capacity
- 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
- Cast zinc-aluminum alloy
Popular clamp for its durability and ease of use. Coated for protection from corrosion and chemical spills.
Fastening Clamp
Model A122
- 16 mm (⅝ in) stirrer support rod capacity
- 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
- Cast zinc-aluminum alloy
Popular clamp designed to accommodate stirrer support rods up to 16 mm (⅝ in) diameter. Coated for protection from corrosion and chemical spills.
Propeller & Shaft
Model A190
- 25 mm (1 in) dia
- 400 mm (16 in) shaft
- Axial flow
Axial flow impeller effective for low shear mixing. Stainless steel blade secured to an 8 mm (⁵⁄₁₆ in) diameter shaft with set screws.
Propeller & Shaft
Model A166
- 64 mm (2 ½ in) dia
- 400 mm (16 in) shaft
- Axial flow
A popular choice for high speed, low viscosity stirring in wide range of applications. Stainless steel blade secured to an 8 mm (⁵⁄₁₆ in) diameter shaft with set screws.
Crossed Blade
Model A130
- 50 mm (2 in) dia
- 400 mm (16 in) shaft
- Radial flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. High vortexing properties.
Straight Blade
Model A231
- 32 mm (1 ¼ in) dia
- 400 mm (16 in) shaft
- Radial flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. Moderate vortexing properties.
Straight Blade
Model A131
- 50 mm (2 in) dia
- 400 mm (16 in) shaft
- Radial flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. Moderate vortexing properties.

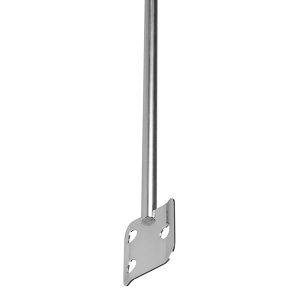

Square Blade
Model A250
- 38 mm (1 ½ in) square
- 400 mm (16 in) shaft
- Tangential flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing of small volumes.
Square Blade
Model A150
- 71 mm (2 ¾ in) square
- 452 mm (17 13⁄₁₆ in) shaft
- Tangential flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing of small volumes.
Collapsible Blade
Model A141
- 10-90 mm (⅜ – 3 ½ in) dia
- 400 mm (16 in) shaft
- Radial flow
For narrow neck vessels. Blades are pinned to an 8 mm (⁵⁄₁₆ in) diameter shaft, fanning out with agitation. For high speed, low viscosity mixing. High shear and moderate vortexing properties.
Pivoting Blade
Model A140
- 60 mm (2 ⅜ in) dia
- 400 mm (16 in) shaft
- Radial flow
Straight blade is pinned to 8 mm (⁵⁄₁₆ in) diameter shaft, allowing it to pivot during agitation. For high speed, low viscosity mixing. Moderate shear and moderate vortexing properties.
PTFE Collapsible
Model A180
- 40 mm (1 ⁹⁄₁₆ in) dia
- 400 mm (16 in) shaft
- Radial flow
PTFE impeller for narrow neck vessels. PTFE blades attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, low viscosity mixing
PTFE Anchor Paddle
Model A183
- 80 mm (3 ⅛ in) dia
- 400 mm (16 in) shaft
- Tangential flow
PTFE blade attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, higher viscosity mixing, ideal for round bottom flasks.
PTFE 4 Blade Pitched
Model A185
- 40 mm (1 ⁹⁄₁₆ in) dia
- 400 mm (16 in) shaft
- Axial flow
Right hand rotation PTFE impeller with 45° pitched blades. Attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, low viscosity mixing.
Anchor Paddle
Model U022
- 51 x 51 mm (2 x 2 in)
- 400 mm (16 in) shaft
- Tangential flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing and can be used close to vessel wall.
Dispersion Blade Only
Model A164
- 48 mm (1 ⅞ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316 stainless steel. For high shear mixing at medium to high speeds.
Straight Blade Only
Model A163
- 40 mm (1 ⁹⁄₁₆ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear, low viscosity mixing with moderate vortexing.

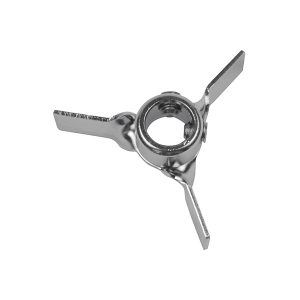

3 Blade Turbine Only
Model A551
- 50 mm (2 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear mixing with moderate vortexing.
3 Blade Turbine Only
Model A553
- 50 mm (2 in) dia
- 9.5 mm (⅜ in) bore
- Radial flow
Electropolished 316L stainless steel. For high shear mixing with moderate vortexing.
Pitched Blade Only
Model A165
- 64 mm (2 ½ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L cast stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection. This product replaces the Pitched Blade Propeller Model A161.
Pitched Blade Only
Model A511
- 25 mm (1 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Pitched Blade Only
Model A521
- 38 mm (1 ½ in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Pitched Blade Only
Model A531
- 50 mm (2 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Pitched Blade Only
Model A533
- 50 mm (2 in) dia
- 9.5 mm (⅜ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Pitched Blade Only
Model A541
- 78 mm (3 in) dia
- 8 mm (⁵⁄₁₆ in) bore
- Axial flow
Electropolished 316L stainless steel. For low shear, high top-to-bottom pumping capacity with high gas injection.
Shaft 406 mm (16 in)
Model A162
- 8 mm (⁵⁄₁₆ in) dia
- 406 mm (16 in) length
- 316L stainless steel
Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore. Excellent corrosion resistance.
Shaft 457 mm (18 in)
Model A722
- 8 mm (⁵⁄₁₆ in) dia
- 457 mm (18 in) length
- 316L stainless steel
Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore. Excellent corrosion resistance.
Shaft 457 mm (18 in)
Model A723
- 9.5 mm (⅜ in) dia
- 457 mm (18 in) length
- 316L stainless steel
Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.
Shaft 508 mm (20 in)
Model A733
- 9.5 mm (⅜ in) dia
- 508 mm (20 in) length
- 316L stainless steel
Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.
Shaft 610 mm (24 in)
Model A742
- 8 mm (⁵⁄₁₆ in) dia
- 610 mm (24 in) length
- 316L stainless steel
Stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore. Enhanced corrosion resistance.
Shaft 610 mm (24 in)
Model A743
- 9.5 mm (⅜ in) dia
- 610 mm (24 in) length
- 316L stainless steel
Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

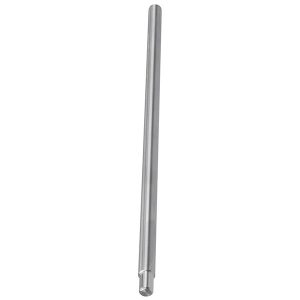

Shaft 762 mm (30 in)
Model A753
- 9.5 mm (⅜ in) dia
- 762 mm (30 in) length
- 316L stainless steel
Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in). Excellent corrosion resistance.
Shaft 305 mm (12 in)
Model A713
- 9.5 mm (⅜ in) dia
- 305 mm (12 in) length
- 316L stainless steel
Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.
Shaft 305 mm (12 in)
Model A712
- 8 mm (⁵⁄₁₆ in) dia
- 305 mm (12 in) length
- 316L stainless steel
Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore. Excellent corrosion resistance.
Safety Stand
Model A110
- 711 mm (28 in) stand rod
- 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
- Cast zinc-aluminum alloy
Wide base and H configuration stability for bench top stirrers, including high torque line. Chemical resistant coating. Additional stand rod lengths, all 25 mm (1 in) diameter, are available.
-
Downloads
CLS Stirrer Guide - Product Information
Stirrer Guide
Caframo Compact Digital Stirrer User Manual - User Manual
User manual for Compact Digital Stirrer model BDC2002 and Reversing Digital Stirrer model BDC2010.
2002 Datasheet - Product Information
2002 Datasheet
-
FAQs
What shaft diameter will a Caframo chuck accept?
The same sized chuck is used for all Caframo overhead stirrers with the exception of the BDC250 Petite. The chuck will accept a shaft from 5 mm to 10 mm (3/16” to 3/8″). Shafts are typically 9.5 mm (3/8″) or 8 mm (5/16”) in diameter. The BDC250 Petite chuck will accept a 6 mm (0.24”) shaft.
How do I know if the Auto Start feature is enabled or disabled on my Caframo stirrer?
The stirrer ships from the factory with Auto Start disabled. On BDC250 and BDC2002 stirrers a solid dot will illuminate in the bottom right corner of the LED display to indicate the Auto Start feature is enabled. On BDC2010 stirrers LED dots will flash along the bottom of the display when Auto Start is enabled. When Auto Start is disabled the solid or flashing dots on the LED display are off. Refer to manual for instructions on how to enable or disable the Auto Start feature.
How do I enable and disable the Auto Start feature on my Caframo stirrer?
To enable the Auto Start feature first ensure stirrer is powered off. Press and hold the Increase Button, then press the Power Button. On BDC250 and BDC2002 stirrers a solid dot will illuminate in the bottom right corner of the LED display to indicate the Auto Start feature is enabled. On BDC2010 stirrers LED dots will flash along the bottom of the display.
To disable the Auto Start first ensure the stirrer is powered off. Press and hold the Decrease Button then press the Power Button. The solid or flashing dots on the LED display will turn off to indicate the Auto Start has been disabled.
Do you drop ship?
Yes. Caframo stirrers and accessories are shipped from stock.
Can I buy directly from Caframo?
Caframo overhead stirrers are sold worldwide by distributors. Click on “Distributor Locator” for our listing of Canadian, American, Mexican and International Distributors.
Who sells stirrers?
Caframo overhead stirrers are sold worldwide by distributors. Click on “Distributor Locator” for our listing of Canadian, American, Mexican and International Distributors.
What are the A110 and A210 stand bases and A120 clamp made of?
The stand bases and clamp are cast zinc-aluminium and painted with a chemical resistant epoxy.
What are the diameters of the A110 and A210 stand rods that Caframo offers?
The rod for the A110 stand has a diameter of 1” and is 28” long. It can be used with the BDC1850, BDC3030, BDC6015, BDC2002, or BDC2010. The rod for the A210 stand has a diameter of 5/8” and is 24” long. It is used with the BDC2010 or BDC2002.
What is the outer diameter of the motor output shaft (where the chuck attaches)?
Caframo overhead stirrers have a motor shaft outer diameter of 0.511” (13 mm). This is just slightly larger than a 1/2”.
What does it mean when the overload LED lights up (BDC1850, BDC3030, BDC6015) or “OL” is displayed (BDC2002, BDC2010)?
The stirrer is mixing something thicker than it is intended for and has shut down so that the motor is protected. Turn the power off, reduce the load and turn the power back on to continue operations. Refer to the owners manual for more information.
What are all the parts I need to start mixing?
To start mixing the following parts are needed: stirrer motor, clamp, stand and mixing impeller. Go to the “Products” section to find the stirrers and accessories available. The Caframo BDC250 Petite stirrer comes as a package. It includes the stirrer motor, integral clamp, stand, and two mixing impellers (axial and straight blade).
How do I reduce the vortexing I am experiencing with my propeller?
A baffle can be used in the vessel to reduce vortexing or the stirrer can be rotated slightly in the clamp so that the mixing shaft is not perpendicular. With the impeller on an angle, the vortex is broken and the introduction of air is minimized.
The paddle I need is not listed on your website. Can you make what I need?
We are happy to make custom paddles. Email or fax a drawing showing the specifications you need and a quotation outlining a part number, price and delivery will be emailed or faxed back for approval.
How do I choose a mixing impeller?
To choose an impeller the volume of the mixture, the size of the mixing vessel and the viscosity of the mixture should be known. The diameter of the mixing blade should measure one third of the diameter of the vessel, and be placed a distance of one third the diameter of the vessel up from the bottom of the vessel.
For thicker mixtures, use a square or “U” shaped anchor paddle. These paddles have more surface area to contact the thick product being mixed. Because thicker mixtures are usually mixed more slowly a paddle diameter closer to the full diameter of the vessel can be used so that the product close to the edge of the vessel is mixed. (A150, A250 are examples of square blade paddles; U022, U044, U055, U510 or A183 are examples of anchor paddles).
Are Caframo stirrers explosion proof?
All Caframo stirrers are built with a brushless DC (BDC) motor which is sparkless. Although this is the case, Caframo stirrers are not deemed intrinsically safe (or explosion proof) as they have not been tested and approved for operation in Class I, Div II requirements.
I have a need for a stirrer with a digital readout and the ability to maintain constant stirring speed despite any voltage fluctuations. Can a Caframo overhead stirrer be used?
All of our stirrers maintain speed as viscosity changes. The power supply on the BDC2002 and BDC2010 is a universal voltage power supply which means a fluctuation in voltage will not hinder the operation of the stirrer.
Do Caframo stirrers maintain speed (rpm) if the viscosity changes?
Yes. Caframo stirrers are digitally controlled. The speed is kept constant with continuous feedback to the motor. The set speed is maintained as the solution viscosity changes.
What maintenance is required for Caframo stirrers?
Caframo overhead stirrers are maintenance free. All are manufactured with brushless DC motors, delivering superior efficiency and a long-lasting performance. There are no brushes that need replacing. The only wear parts are the belts of the transmission of the BDC1850, BDC3030 and BDC6015.
You may also like…
Compact Stand
Model A210
- 610 mm (24 in) stand rod
- 240 L x 301.3 W mm footprint (9 ⁷⁄₁₆ x 11 ⅞ in)
- Unique offset design
Robust stand in a smaller bench footprint for compact stirrers BDC2002 and BDC2010. Chemical-resistant coated cast zinc-aluminum alloy base.
Fastening Clamp
Model A120
- 12.5 mm (½ in) stirrer support rod capacity
- 15‑30 mm stand rod (9⁄₁₆ ‑ 1 3⁄₁₆ in)
- Cast zinc-aluminum alloy
Popular clamp for its durability and ease of use. Coated for protection from corrosion and chemical spills.

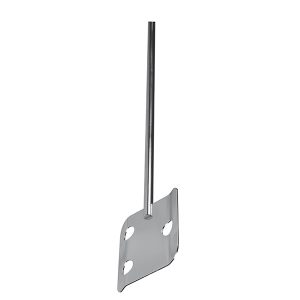

Straight Blade
Model A131
- 50 mm (2 in) dia
- 400 mm (16 in) shaft
- Radial flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. Moderate vortexing properties.
