Propeller & Shaft

Model A166

A166
  • A166

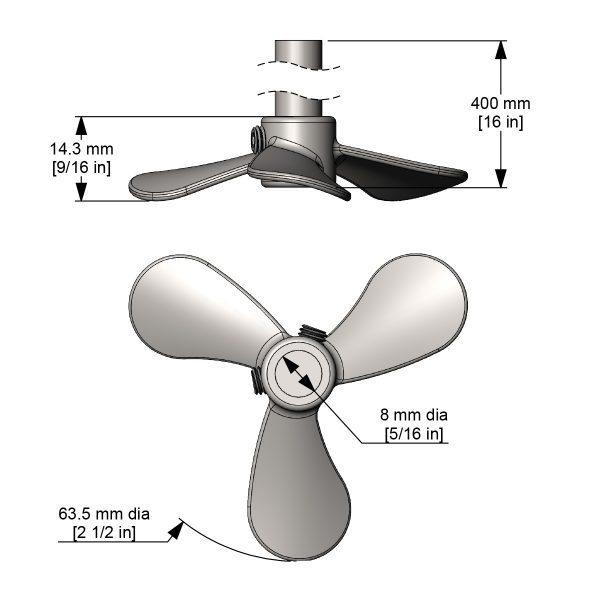

  • A166_Shaded Dimensional Drawing

Propeller & Shaft

Model A166

This popular impeller serves a wide range of stirring applications, pairing the blade and shaft in a convenient package. This axial flow impeller is effective for high speed, low to medium viscosity mixing. The 64 mm (2 ½ in) diameter­­ blade fixes to an 8 mm (⁵⁄₁₆ in) diameter shaft with included set screws. Blade and shaft are electropolished 316L stainless steel. For low shear, high top to bottom pumping capacity with high gas injection, able to vortex 19 L (5 gal) of water at 3600 rpm. This product replaces the Pitched Blade Propeller Model A160.


Flow Pattern Axial
Blade Diameter 64 mm (2 ½ in)
Blade Rotation Left hand
Shaft Length 400 mm (16 in)
Shaft Diameter 8 mm (⁵⁄₁₆ in)
Material Electropolished 316L stainless steel
Weight 181 g (0.4 lb)
A166

Cast pitched blade propeller, 64 mm (2 ½ in) diameter­­ blade paired with 400 mm (16 in) shaft, includes set screws.

A165

Cast pitched blade propeller 64 mm (2 ½ in) blade only, with 8 mm (⁵⁄₁₆ in) bore, includes set screws.

Use with: BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 overhead stirrers

  • Features
    • Electropolished 316L stainless steel
    • Secured to shaft with set screws
    • Pitched blade propeller
    • High speed low shear axial flow
  • Benefits
    • Chemically inert and corrosion resistant
    • Able to adjust position of impeller blade along shaft
    • Scale up advantage if propeller used in production
    • Serves a wide range of applications – a popular choice of impeller
