Fastening Clamp

Model A122

Fastening Clamp A122
  • Fastening Clamp A122

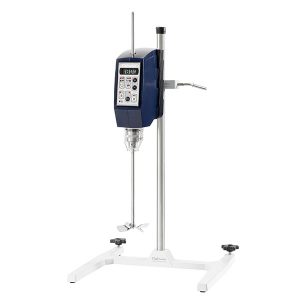

  • Ultra Torque 1850 Stirring System

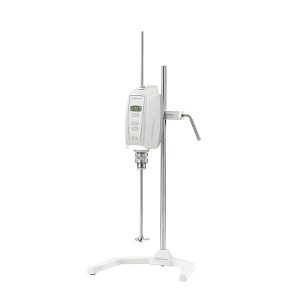

  • Compact Digital 2002 Stirring System

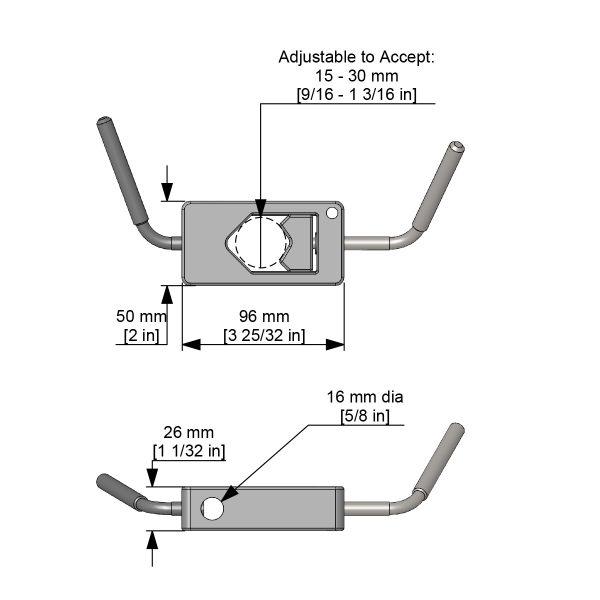

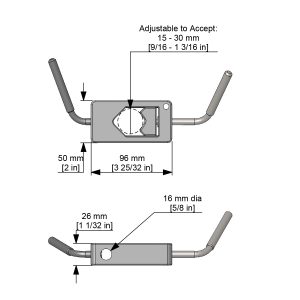

  • Fastening Clamp A122 Dimensions

Fastening Clamp

Model A122

Our popular clamp designed to accommodate stirrer support rods up to 16 mm (⅝ in) diameter.  Durable, strong and easy to use.  Includes a convenient place to hold chuck key. The cast zinc-aluminum alloy is coated for protection from corrosion and chemical spills.


Stirrer Support Rod Diameter Max 16 mm (⅝ in)
Stand Rod Diameters 15 – 30 mm (⁹⁄₁₆ – 1 3⁄₁₆ in)
Clamp material Cast zinc-aluminum alloy coated with chemical resistant epoxy paint
A122

Stirrer clamp. Accommodates 16 mm (⅝ in) stirrer support rod and up to 25 mm (1 in) stand rod.

A120

Stirrer clamp. Accommodates 12.5 mm (½ in) stirrer support rod and up to 25 mm (1 in) stand rod.

Compatible stands: A110, A112, A113, A114, A210

  • Features
    • Cast zinc-aluminum alloy coated with chemical resistant epoxy paint
    • No tool required
    • Place to hold chuck key
  • Benefits
    • Chemical and corrosion resistant - durable and easy to clean
    • Easy and quick one-handed tightening
    • Convenient and accessible location when key is needed
  • Safety Stand A110

    Safety Stand

    Model A110

    • 711 mm (28 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Wide base and H configuration stability for bench top stirrers, including high torque line. Chemical resistant coating. Additional stand rod lengths, all 25 mm (1 in) diameter, are available.

    Compare
  • System Stand A112

    System Stand

    Model A112

    • 711 mm (28 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Able to support additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Diameter of the central rod is 25 mm (1 in).

    Compare
  • System Stand A113

    System Stand

    Model A113

    • 965 mm (38 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).

    Compare
  • System Stand A114

    System Stand

    Model A114

    • 1219 mm (48 in) stand rod
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Two threaded holes for A300 support rods



    Supports additional apparatus on secondary rods. Chemical-resistant coated cast zinc-aluminum alloy base. Central rod diameter is 25 mm (1 in).

    Compare
  • Compare
  • Compact Stand A210

    Compact Stand

    Model A210

    • 610 mm (24 in) stand rod
    • 240 L x 301.3 W mm footprint (9 ⁄₁₆ x 11 ⅞ in)
    • Unique offset design



    Robust stand in a smaller bench footprint for compact stirrers BDC2002 and BDC2010.  Chemical-resistant coated cast zinc-aluminum alloy base.

    Compare
  • Safety Stand Base A110BASE

    Safety Stand Base

    Model A110BASE

    • Base only
    • 416 W x 430 L mm footprint (16 ⅜ x 16 15⁄₁₆ in)
    • Cast zinc-aluminum alloy



    Wide base and H configuration provide excellent stability for bench top stirrers, including high torque line. Chemical resistant coating.

    Compare
  • ROD28

    Stand Rod

    Model ROD28

    • 711 mm (28 in) length
    • 25 mm (1 in) diameter
    • 304 stainless steel



    Stand rod only.  Compatible with A110 stand base. Customize A113 or A114 stand with 711 mm (28 in) stand rod.

    Compare
  • ROD38

    Stand Rod

    Model ROD38

    • 965 mm (38 in) length
    • 25 mm (1 in) diameter
    • 304 stainless steel



    Stand rod only.  Compatible with A110 stand base. Customize A112 or A114 stand with 965 mm (38 in) stand rod.

    Compare
  • ROD48

    Stand Rod

    Model ROD48

    • 1219 mm (48 in) length
    • 25 mm (1 in) diameter
    • 304 stainless steel



    Stand rod only.  Compatible with A110 stand base. Customize A112 or A113 stand with 1219 mm (48 in) stand rod.

    Compare
