Straight Blade

Model A231

A231
  • A231

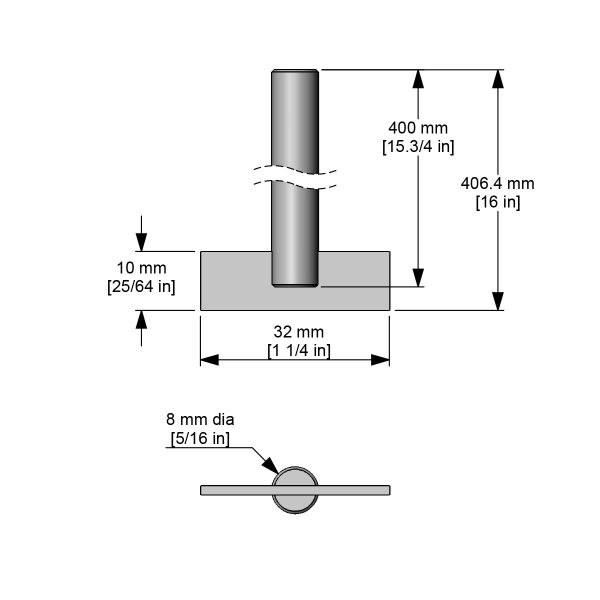

  • A231 ShadedDimensional Drawing

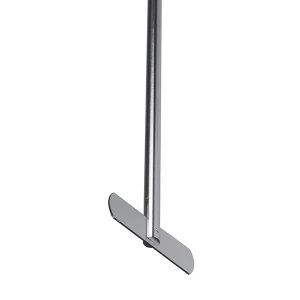

Straight Blade

Model A231

This radial flow impeller is effective for high speed, low viscosity mixing. The 32 mm (1 ¼ in) diameter blade is welded to an 8 mm (⁵⁄₁₆ in) diameter shaft, all electropolished 316L stainless steel. A high shear impeller with moderate vortexing properties.


Flow Pattern Radial
Blade Diameter 32 mm (1 ¼ in)
Shaft Length 400 mm (16 in)
Shaft Diameter 8 mm (⁵⁄₁₆ in)
Material Electropolished 316L stainless steel
Weight 120 g (0.3 lb)
A231

Straight blade impeller, 32 mm (1 ¼ in) diameter blade, welded to shaft

Use with: BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 overhead stirrers

  • Features
    • Electropolished 316L stainless steel
    • Welded to shaft
  • Benefits
    • Chemically inert and corrosion resistant
    • One piece - quick to insert and begin mixing

You may also like…

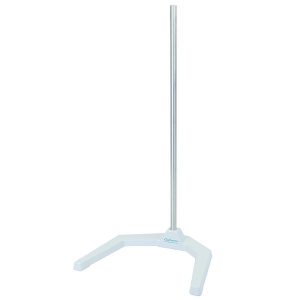

  • Compact Stand A210
