Straight Blade

Model A131

A131
  • A131

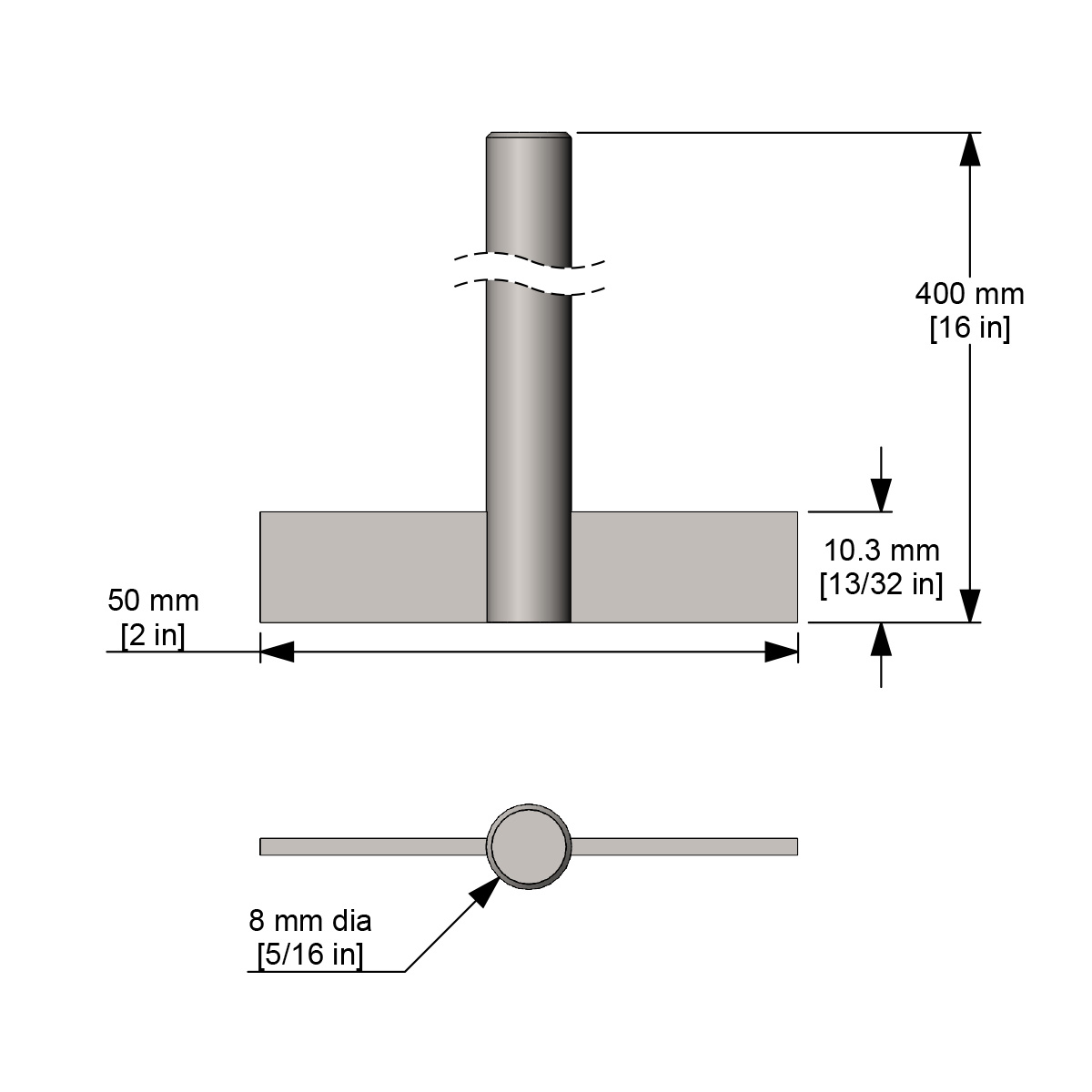

  • A131 ShadedDimensional Drawing

Straight Blade

Model A131

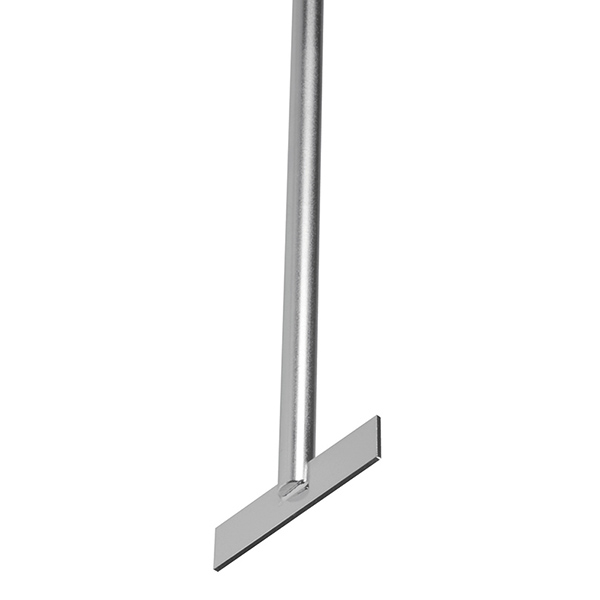

This radial flow impeller is effective for high speed, low viscosity mixing. The 50 mm (2 in) diameter blade is welded to an 8 mm (⁵⁄₁₆ in) diameter shaft, all electropolished 316L stainless steel. A high shear impeller with moderate vortexing properties, creating a vortex in 19 L (5 gal) of water at 1200 rpm.


Flow Pattern Radial
Blade Diameter 50 mm (2 in)
Shaft Length 400 mm (16 in)
Shaft Diameter 8 mm (⁵⁄₁₆ in)
Material Electropolished 316L stainless steel
Weight 128 g (0.3 lb)
A131

Straight blade impeller, 50 mm (2 in) diameter blade, welded to shaft

Use with: BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 overhead stirrers

  • Features
    • Electropolished 316L stainless steel
    • Welded to shaft
  • Benefits
    • Chemically inert and corrosion resistant
    • One piece - quick to insert and begin mixing
