Showing 1–12 of 17 results

  • A190

    Propeller & Shaft

    Model A190

    • 25 mm (1 in) dia
    • 400 mm (16 in) shaft
    • Axial flow



    Axial flow impeller effective for low shear mixing. Stainless steel blade secured to an 8 mm (⁵⁄₁₆ in) diameter shaft with set screws.

    Compare
  • A166

    Propeller & Shaft

    Model A166

    • 64 mm (2 ½ in) dia
    • 400 mm (16 in) shaft
    • Axial flow



    A popular choice for high speed, low viscosity stirring in wide range of applications. Stainless steel blade secured to an 8 mm (⁵⁄₁₆ in) diameter shaft with set screws.

    Compare

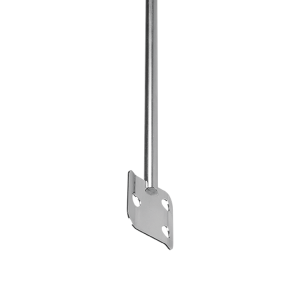

  • Square Blade

    Model A250

    • 38 mm (1 ½ in) square
    • 400 mm (16 in) shaft
    • Tangential flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing of small volumes.

    Compare

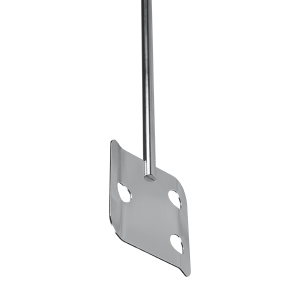

  • Square Blade

    Model A150

    • 71 mm (2 ¾ in) square
    • 452 mm (17 13⁄₁₆ in) shaft
    • Tangential flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing of small volumes.

    Compare

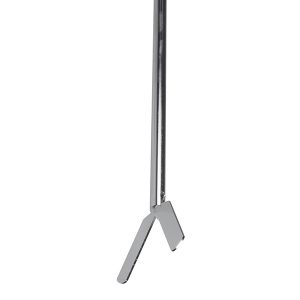

  • A141

    Collapsible Blade

    Model A141

    • 10-90 mm (⅜ – 3 ½ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    For narrow neck vessels. Blades are pinned to an 8 mm (⁵⁄₁₆ in) diameter shaft, fanning out with agitation. For high speed, low viscosity mixing. High shear and moderate vortexing properties.

    Compare
  • A140

    Pivoting Blade

    Model A140

    • 60 mm (2 ⅜ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Straight blade is pinned to 8 mm (⁵⁄₁₆ in) diameter shaft, allowing it to pivot during agitation. For high speed, low viscosity mixing. Moderate shear and moderate vortexing properties.

    Compare
  • A130

    Crossed Blade

    Model A130

    • 50 mm (2 in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. High vortexing properties.

    Compare
  • A131

    Straight Blade

    Model A131

    • 50 mm (2 in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. Moderate vortexing properties.

    Compare

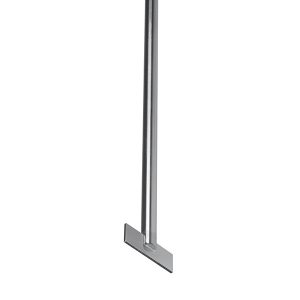

  • A231

    Straight Blade

    Model A231

    • 32 mm (1 ¼ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, high shear, low viscosity mixing. Moderate vortexing properties.

    Compare
  • A180

    PTFE Collapsible

    Model A180

    • 40 mm (1 ⁹⁄₁₆ in) dia
    • 400 mm (16 in) shaft
    • Radial flow



    PTFE impeller for narrow neck vessels. PTFE blades attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, low viscosity mixing

    Compare

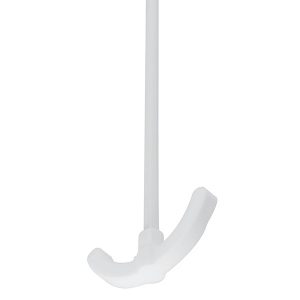

  • A183

    PTFE Anchor Paddle

    Model A183

    • 80 mm (3 ⅛ in) dia
    • 400 mm (16 in) shaft
    • Tangential flow



    PTFE blade attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, higher viscosity mixing, ideal for round bottom flasks.

    Compare
  • A185

    PTFE 4 Blade Pitched

    Model A185

    • 40 mm (1 ⁹⁄₁₆ in) dia
    • 400 mm (16 in) shaft
    • Axial flow



    Right hand rotation PTFE impeller with 45° pitched blades. Attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, low viscosity mixing.



    Compare
