Impellers & Shafts
Product FiltersShowing 25–36 of 40 results
PTFE Anchor Paddle
Model A183
- 80 mm (3 ⅛ in) dia
- 400 mm (16 in) shaft
- Tangential flow
PTFE blade attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, higher viscosity mixing, ideal for round bottom flasks.
PTFE 4 Blade Pitched
Model A185
- 40 mm (1 ⁹⁄₁₆ in) dia
- 400 mm (16 in) shaft
- Axial flow
Right hand rotation PTFE impeller with 45° pitched blades. Attached to coated 8 mm (⁵⁄₁₆ in) diameter shaft. For high speed, low viscosity mixing.
Anchor Paddle
Model U022
- 51 x 51 mm (2 x 2 in)
- 400 mm (16 in) shaft
- Tangential flow
Stainless steel blade welded to 8 mm (⁵⁄₁₆ in) diameter shaft. For low speed, high viscosity mixing and can be used close to vessel wall.

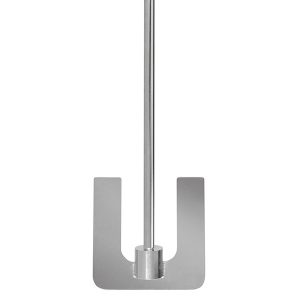

Anchor Paddle
Model U044
- 102 x 102 mm (4 x 4 in)
- 914 mm (36 in) shaft
- Tangential flow
Stainless steel blade welded to 9.5 mm (⅜ in) diameter shaft. For low speed, high viscosity mixing and can be used close to vessel wall.

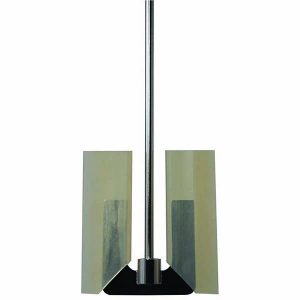

Anchor & Sweep
Model U044SW
- 152 x 145 mm (6 x 5 ¾ in)
- 914 mm (36 in) shaft
- Tangential flow
U044 anchor paddle with two Sweep accessories. For low speed, high viscosity mixing, sweeping product effectively off standard 4 L beaker wall.

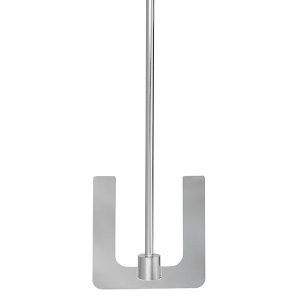

Anchor Paddle
Model U055
- 127 x 127 mm (5 x 5 in)
- 914 mm (36 in) shaft
- Tangential flow
Stainless steel blade welded to 9.5 mm (⅜ in) diameter shaft. For low speed, high viscosity mixing and can be used close to vessel wall.

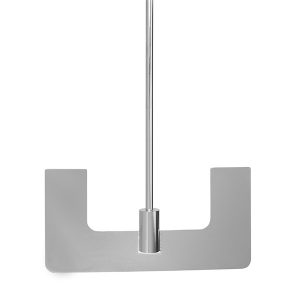

Anchor Paddle
Model U510
- 127 x 254 mm (5 x 10 in)
- 914 mm (36 in) shaft
- Tangential flow
Stainless steel blade welded to 9.5 mm (⅜ in) diameter shaft. For low speed, high viscosity mixing and can be used close to vessel wall.

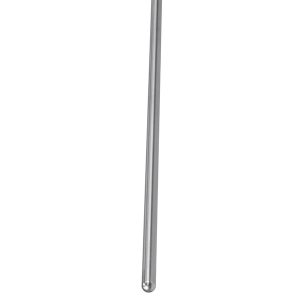

Shaft 305 mm (12 in)
Model A712
- 8 mm (⁵⁄₁₆ in) dia
- 305 mm (12 in) length
- 316L stainless steel
Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore. Excellent corrosion resistance.
Shaft 305 mm (12 in)
Model A713
- 9.5 mm (⅜ in) dia
- 305 mm (12 in) length
- 316L stainless steel
Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.

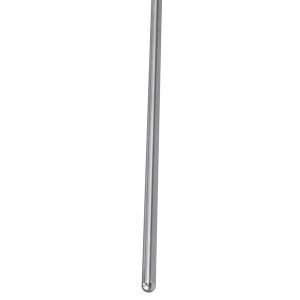

Shaft 406 mm (16 in)
Model A162
- 8 mm (⁵⁄₁₆ in) dia
- 406 mm (16 in) length
- 316L stainless steel
Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore. Excellent corrosion resistance.
Shaft 457 mm (18 in)
Model A722
- 8 mm (⁵⁄₁₆ in) dia
- 457 mm (18 in) length
- 316L stainless steel
Passivated stainless steel shaft for impeller blades with 8 mm (⁵⁄₁₆ in) diameter bore. Excellent corrosion resistance.

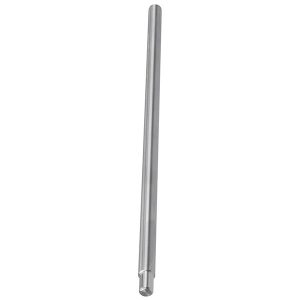

Shaft 457 mm (18 in)
Model A723
- 9.5 mm (⅜ in) dia
- 457 mm (18 in) length
- 316L stainless steel
Passivated stainless steel shaft for blades with bores of either 8 mm (⁵⁄₁₆ in) or 9.5 mm (⅜ in) diameter. Excellent corrosion resistance.
