Anchor Paddle

Model U044

U044
  • U044

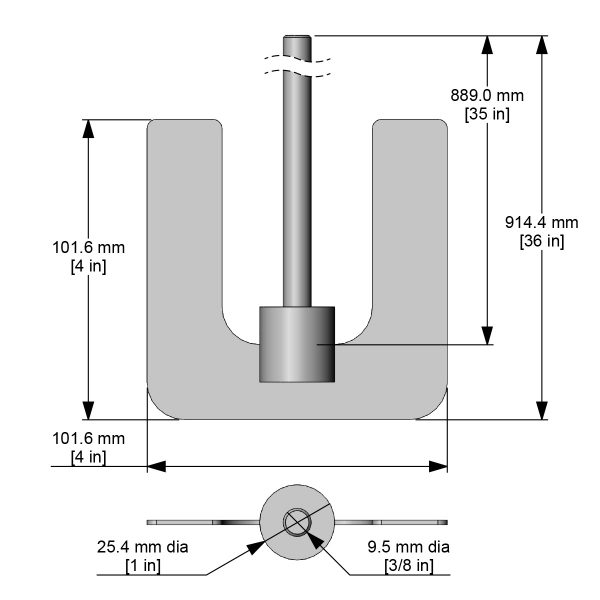

  • U044 ShadedDimensional Drawing

Anchor Paddle

Model U044

This tangential flow impeller is effective for low speed, high viscosity mixing. The 102 x 102 mm (4 x 4 in) ­anchor blade is welded to an 9.5 mm (⅜ in) diameter shaft, all electropolished 316L stainless steel. Fits the Sweep accessory covers SW4. The high shear at the edges makes it a good choice to use close to the vessel wall.


Flow Pattern Tangential
Blade Diameter 102 x 102 mm (4 x 4 in) ­anchor blade
Shaft Length 914 mm (36 in)
Shaft Diameter 9.5 mm (⅜ in)
Material Electropolished 316L stainless steel
Weight 280 g (0.6 lb)
U044

Anchor impeller, 102 x 102 mm (4 x 4 in)­ blade, welded to shaft.

Use with: BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 overhead stirrers

  • Features
    • Tangential flow
    • Electropolished 316L stainless steel
    • Welded to shaft
    • Fits Sweep accessory SW4
  • Benefits
    • Effective for low speed high viscosity mixing
    • Chemically inert and corrosion resistant
    • One piece - quick to insert and begin mixing
    • Sweeps product from wall of standard 4 L beaker
  • SW4

    Sweep Blade

    Model SW4

    • 152 x 55 mm (6 x 2 3⁄₁₆ in)
    • Fits 4 L beaker
    • Silicone SCX 0570



    Fits on U044 anchor paddle, for viscosities up to 38,000 mPas. FDA-compliant silicone is heat tolerant up to 100 °C (210 °F). Package of 6 (3 pairs).
