Chuck Set

Model A016SET

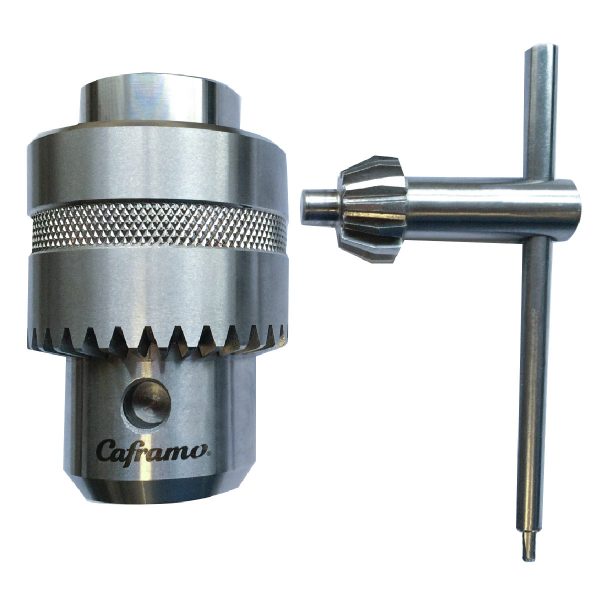

Crossover 1540 Chuck and Key A016SET
  • Crossover 1540 Chuck and Key A016SET

Chuck Set

Model A016SET

Chuck is used with Caframo Crossover 1540 mixer, accepting impeller shafts up to 16 mm (⅝ in) diameter. Chuck key includes hex tool for removal from mixer’s output shaft for cleaning or replacement. Through shaft capability allows for easy adjustment of impeller height. Compatible with Caframo Chuck Shaft Guard (CG6).


Material 420 stainless steel
Through Shaft Yes
Impeller Shaft Diameters Adjustable to 15.9 mm (⅝ in)
Fits Motor Shaft 24.8 mm (0.98 in)
Multipurpose Tool Chuck key and 3 mm hex tool in one
Weight 1.1 kg (2.4 lb)
A016SET

Chuck and chuck key for Caframo Crossover mixer, includes set screw and hex tool for installation.

A016KEY

Chuck key only for A016SET chuck, includes hex tool for chuck installation.

Use with: 1540 mixer

Compatible with:  CG6

  • Features
    • Accepts shafts up to 16 mm (⅝ in) diameter
    • Through shaft
    • 420 stainless steel
    • Keyed chuck
    • Chuck key includes 3 mm hex tool
    • Available Chuck Shaft Guard CG6
  • Benefits
    • Adjustable for a wide range of shaft diameters
    • Easy adjustment of impeller height
    • High strength and high wear resistance
    • Secure attachment for high torque mixing
    • Easy installation and removal for chuck cleaning
    • Guards spinning chuck and shaft
  • Crossover 1540 Chuck Shaft Guard CG6

    Chuck Shaft Guard

    Model CG6

    • Polycarbonate ABS
    • Simple bolt mounting
    • Safety accessory



    Quickly bolts in place to create a barrier around the moving chuck and shaft, and protects the chuck from splash.  Use with industrial mixer 1540.

    Compare
  • A016KEY

    Chuck Key Only

    Model A016KEY

    • 132 x 70 mm (5 3⁄₁₆ x 2 ¾ in)
    • Multipurpose tool
    • 420 stainless steel



    Chuck key from the A016SET. Includes hex tool for chuck installation and removal, which can also install chuck shaft guard.

    Compare
