Anchor Paddle

Model U510

  • U510

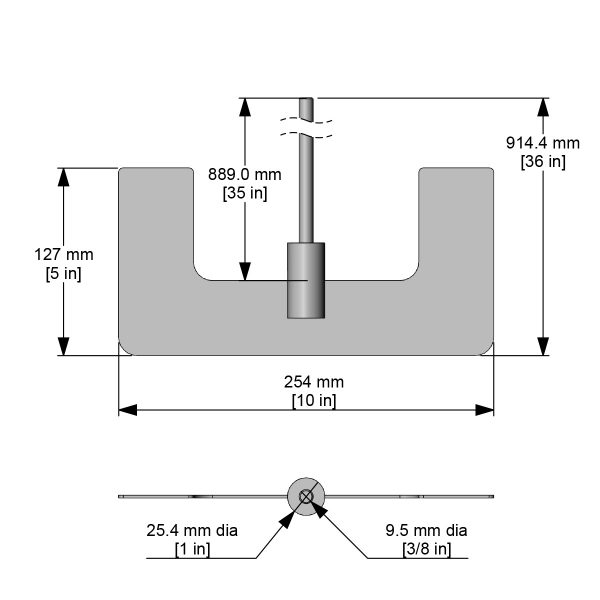

  • U510 ShadedDimensional Drawing

Anchor Paddle

Model U510

This tangential flow impeller is effective for low speed, high viscosity mixing. The 127 x 254 mm (5 x 10 in) anchor blade is welded to a 9.5 mm (⅜ in) diameter shaft, all electropolished 316L stainless steel. Sometimes referred to as a “sweep”, the high shear at the edges makes it a good choice to use close to the vessel wall.  Due to the torque required for effective stirring, we recommend the Caframo overhead stirrer BDC1850.

Flow Pattern Tangential
Blade Diameter 127 x 254 mm (5 x 10 in) ­anchor blade
Shaft Length 914 mm (36 in)
Shaft Diameter 9.5 mm (⅜ in)
Material Electropolished 316L stainless steel
Weight 720 g (1.6 lb)

Anchor impeller, 127 x 254 mm (5 x 10 in) blade, welded to shaft

Use with:  1540 mixer or BDC1850 overhead stirrer

  • Features
    • Tangential flow
    • Electropolished 316L stainless steel
    • Welded to shaft
  • Benefits
    • Effective for low speed high viscosity mixing
    • Chemically inert and corrosion resistant
    • One piece - quick to insert and begin mixing
