SW4
  • SW4
  • U044SW

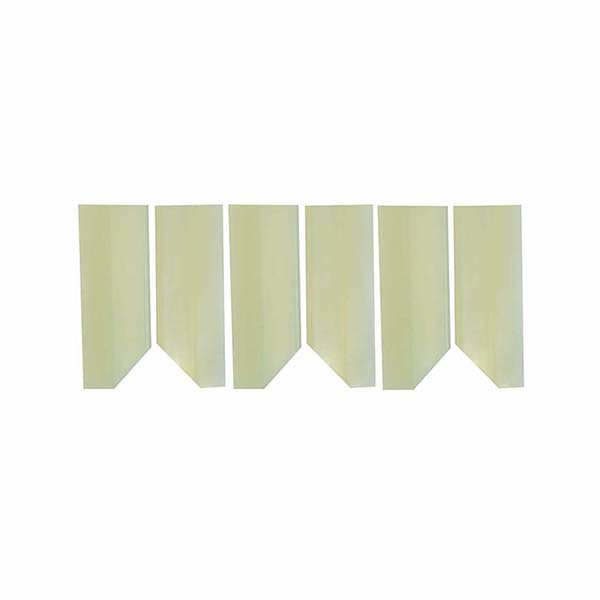

Sweep Blade

Model SW4

Maximize the stirring results of Caframo’s U044 anchor impeller with the sweep blade accessory. Effectively move viscous product from vessel walls back to the centre for thorough mixing. The Silicone SCX 0570 is compliant with FDA 21 CFR 177.2600 and resilient to stir batches with viscosities up to 38,000 mPas. Compatible with a standard 4 L beaker for continuous sweeping while stirring. Ideal for formulating creams and lotions. Comes as a package of 6 (3 pairs). Please note a vessel clamp is required.


Material Silicone SCX 0570 – Compliant with FDA 21 CFR 177.2600
Compatible Impeller U044 anchor paddle
Blade Dimensions 152 x 55 mm (6 x 2 3⁄₁₆ in)
Vessel Standard 4 L beaker
Viscosity Range 0-38,000 mPas (0-38,000 cP)
Temperature Maximum 100 °C (210 °F)
Weight (U044SW) 1.5 kg (3.4 lb)
Weight (SW4) 0.5 kg (1.2 lb)
SW4

Sweep blades only, package of 6 (3 pairs)

U044SW

U044 anchor paddle, sized 102 x 102 mm (4 x 4 in), with two sweep blades included

Use with:  BDC1850 or BDC3030 overhead stirrers, U044 anchor paddle

Note: Vessel clamp is required, optimal performance using 4 L beaker

  • Features
    • Viscosity range 0-38
    • 000 mPas
    • Sweeps product from vessel wall
    • Heat tolerant up to 100 °C (210 °F)
    • Silicone compliant for processes regulated by FDA 21 CFR 177.2600
    • Molded silicone
  • Benefits
    • Viscous product mixing
    • No longer requires a spatula to scrape down
    • Can be used in heated processes
    • Material approved for repeated use in food processes
    • Easily modified or customized by trimming with scissors
  • U044

    Anchor Paddle

    Model U044

    • 102 x 102 mm (4 x 4 in)
    • 914 mm (36 in) shaft
    • Tangential flow



    Stainless steel blade welded to 9.5 mm (⅜ in) diameter shaft. For low speed, high viscosity mixing and can be used close to vessel wall.
